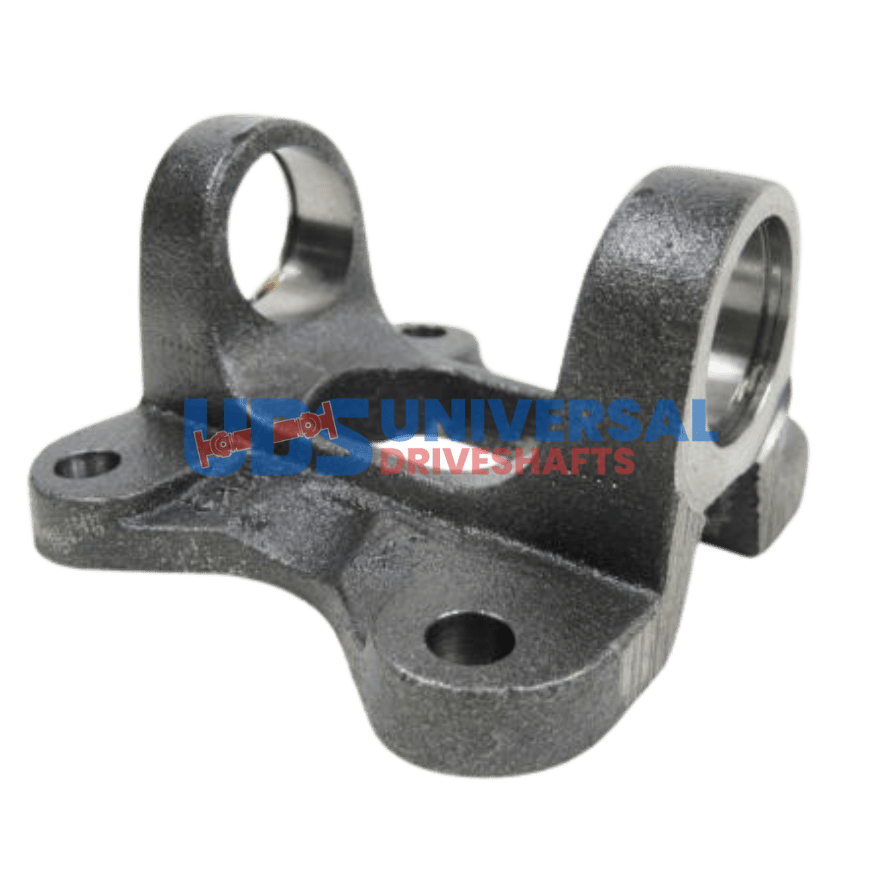

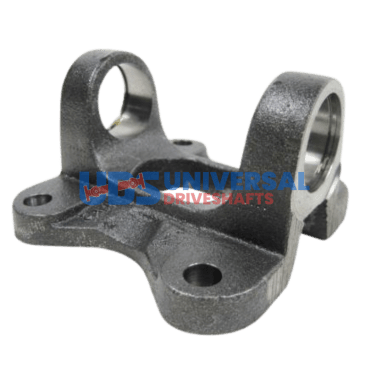

N3-2-5107 | 3502-261 | 3-2-5107 Flange Yoke 1350 Series, Female Pilot: 2.638 Sprinter from 07, REC Pattern 2.825 x 3.385
$43.19
20 in stock
16 People watching this product now!
Description
N3-2-5107, 3-2-5107 Flange Yoke — 1350 series, 4.410 bolt circle | 2.638 pilot | 4×0.400 bolt holes | 1.625″ CJ-to-flat. Complete bolt-on replacement. Verify bolt circle and pilot before ordering.
Full Description
The N3-2-5107, 3-2-5107 flange yoke mounts to the companion flange or axle housing and carries the driveshaft end u-joint. It's not a universal part — the bolt circle, pilot diameter, and series are all specific. Vibration that tracks with vehicle speed and stays consistent under load often starts right here, at a worn or mis-seated flange yoke. The N3-2-5107, 3-2-5107 flange yoke is the correct replacement.
N3-2-5107, 3-2-5107 Flange Yoke — 1350 Series Specifications & Fitment
The 1350 series covers 3/4-ton trucks — F-250, Ram 2500, Dana 44/60 axles, performance 4x4. The N3-2-5107, 3-2-5107 flange yoke specs: 4.410 bolt circle | 2.638 pilot | 4x0.400 bolt holes | 1.625" CJ-to-flat. Pilot diameter is what centers the yoke on the companion flange — that dimension must match exactly or the driveshaft will run off-center at speed. Bolt circle determines your hole pattern match.
Before ordering the N3-2-5107, 3-2-5107 flange yoke, measure your diff flange bolt circle and pilot diameter directly. Don't rely on series designation alone — after an axle swap, the flange dimensions may differ from the original factory spec. Brand: UDS. Verify, then order.
Key Features
- Series: 1350 — built for 3/4-ton trucks — F-250, Ram 2500, Dana 44/60 axles, performance 4x4
- Bolt circle: 4.410 — must match axle/diff flange hole pattern exactly
- Pilot dia: 2.638 — centers yoke on companion flange, no play allowed
- 4 bolt holes at 0.400 — verify hole count and size
- CJ-to-flat: 1.625" — affects driveshaft working angle clearance
- Brand: UDS — direct-fit replacement
Specifications
- SKU: N3-2-5107, 3-2-5107
- Brand: UDS
- Series: 1350
- Bolt Circle: 4.410
- Pilot Dia: 2.638
- Bolt Holes: 4
- Bolt Hole Dia: 0.400
- CJ to Flat: 1.625"
Additional information
| Bolt circle dia | 4.410 |
|---|---|
| Bolt hole dia | 0.400 |
| Cj to flat | 1.625 |
| Partn number | N3-2-5107 |
| Pilot dia | 2.638 ,F |
| Series | 1350 |
| Bolt Holes | 4 |
