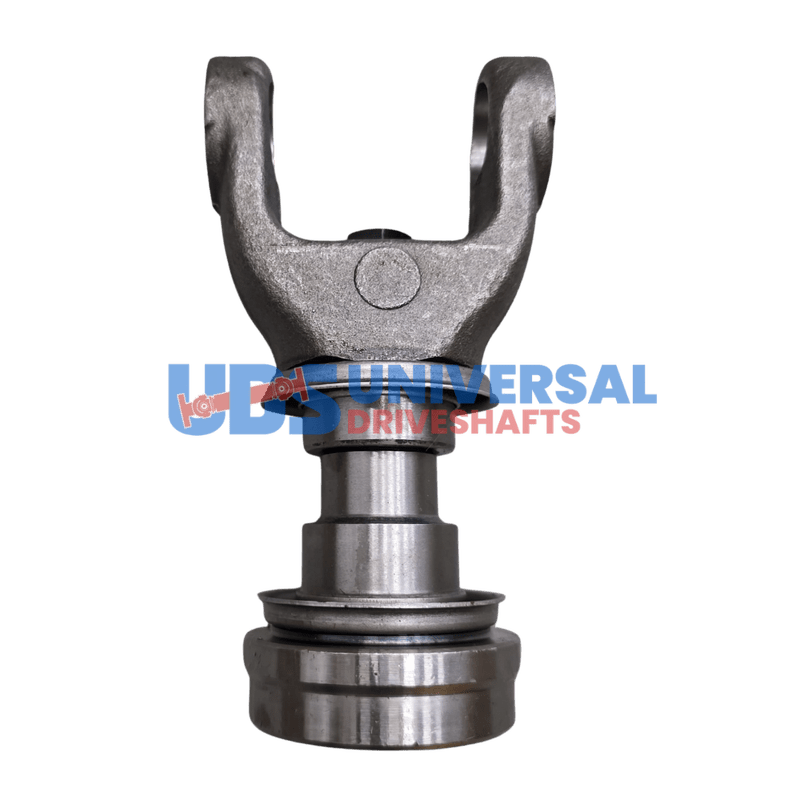

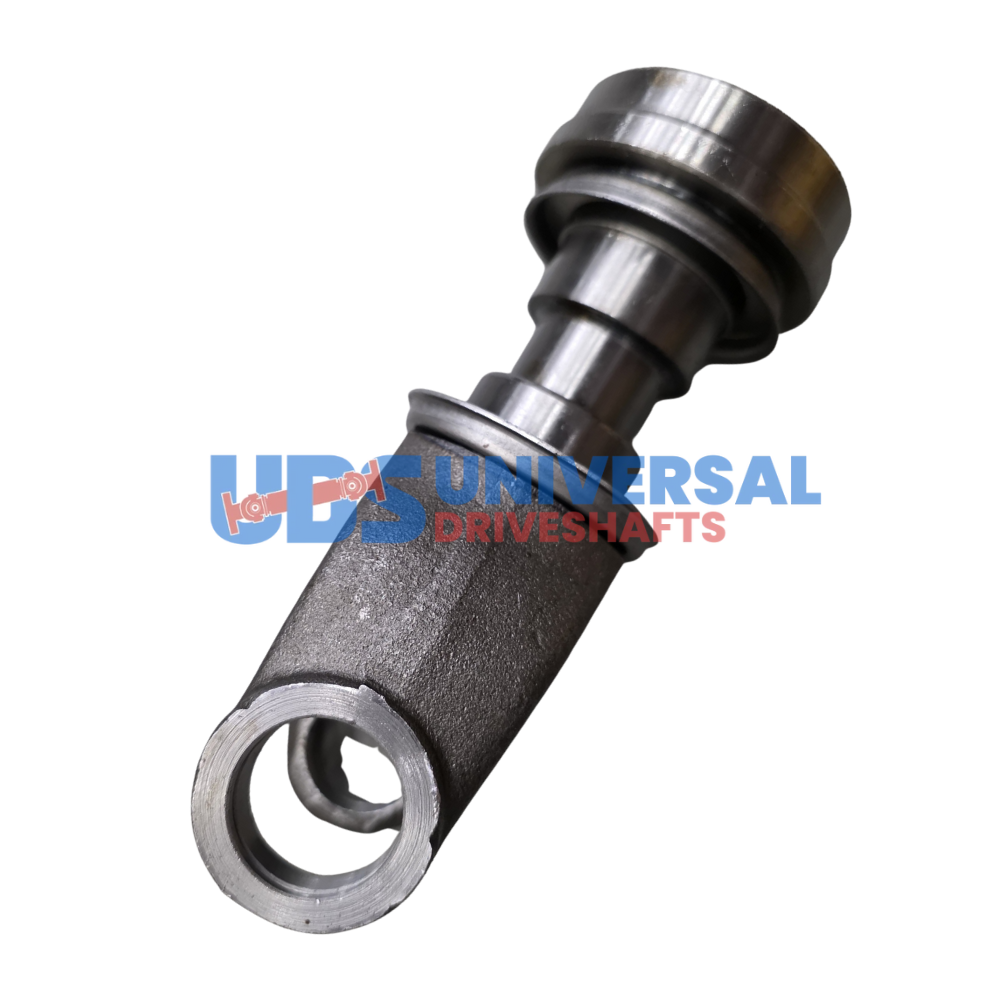

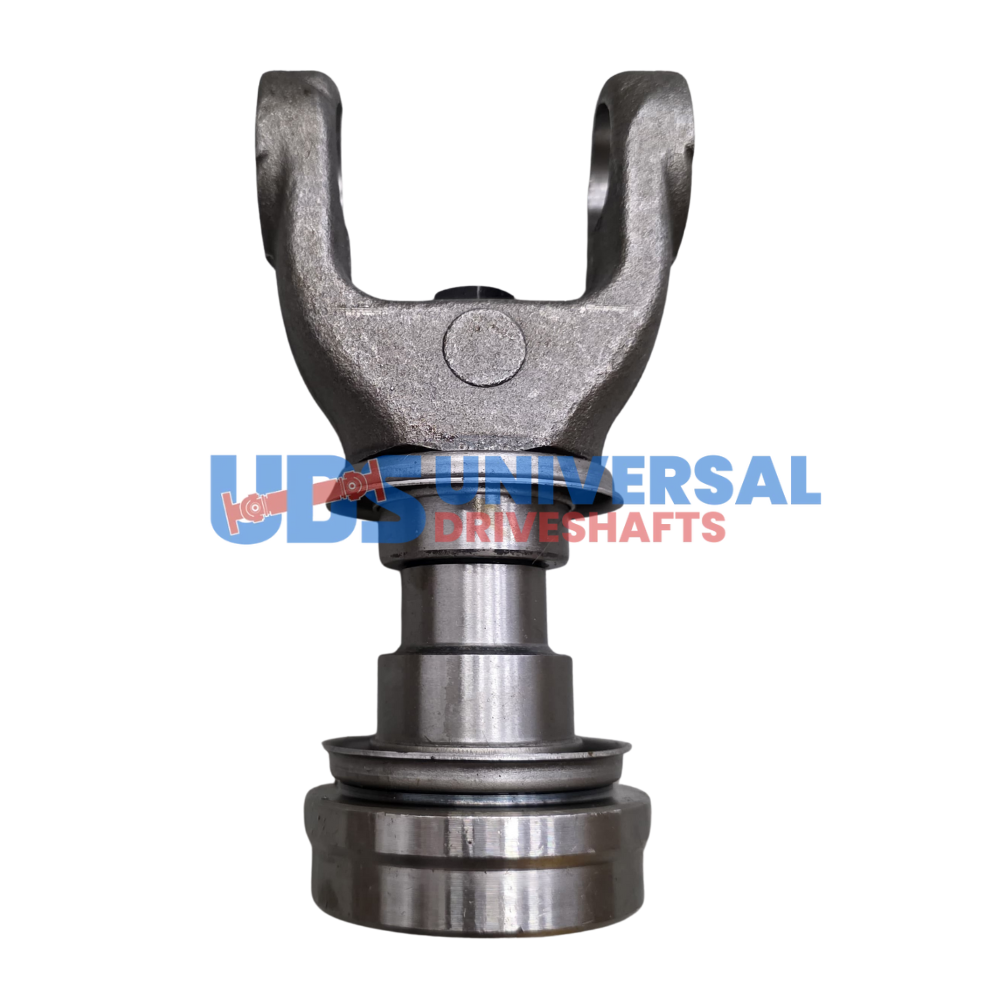

MDS27-746 – Steel Slip Assembly 1330 Series – 28 Splines X 1.100 Dia, Fits tube 2.500×0.065
$66.74
10 in stock
18 People watching this product now!
Description
MDS27-746 is a steel slip assembly with a 1.100″ spline diameter and 28 splines, designed for tube 2.500X0.065.
Full Description
MDS27-746 is a robust steel slip assembly that features a 1.100" spline diameter and 28 splines, making it a reliable choice for your driveline needs. This component belongs to the 1330 Series, which is known for its compatibility and performance in various applications. The assembly is designed to fit a tube size of 2.500X0.065, ensuring a snug fit and effective power transfer.
One of the critical aspects of the MDS27-746 is its butt diameter of 2.381", which is essential for maintaining alignment and stability in the driveline system. If you mistakenly use a slip assembly with a different butt diameter, you risk misalignment, which can lead to premature wear or even failure of the driveline components.
Additionally, the MDS27-746 has a centerline to weld measurement of 5.250" and a bearing size of 1.102" (28MM), which are crucial for ensuring proper installation and functionality. When installing, always double-check these measurements to avoid complications.
- 1.100" spline diameter for a precise fit
- 28 splines for enhanced torque transfer
- Fits tube size 2.500X0.065 for compatibility
- Butt diameter of 2.381" for alignment
- Centerline to weld: 5.250" for accurate installation
Overall, the MDS27-746 slip assembly is a vital component for any driveline system requiring durability and precision. Ensure you select this specific assembly to avoid compatibility issues that can arise from using incorrect dimensions.
Additional information
| Series | 1330 |
|---|---|
| Splines count | 28 |
| Splines dia | 1.100" |
| Fits to tube | 2.500X0.065 |
| Butt dia | 2.381 |
| Notes | CL to Weld: 5.250 – Bearing: 1.102 ( 28MM ) |
| Material | STEEL |
| Brand | UDS |
