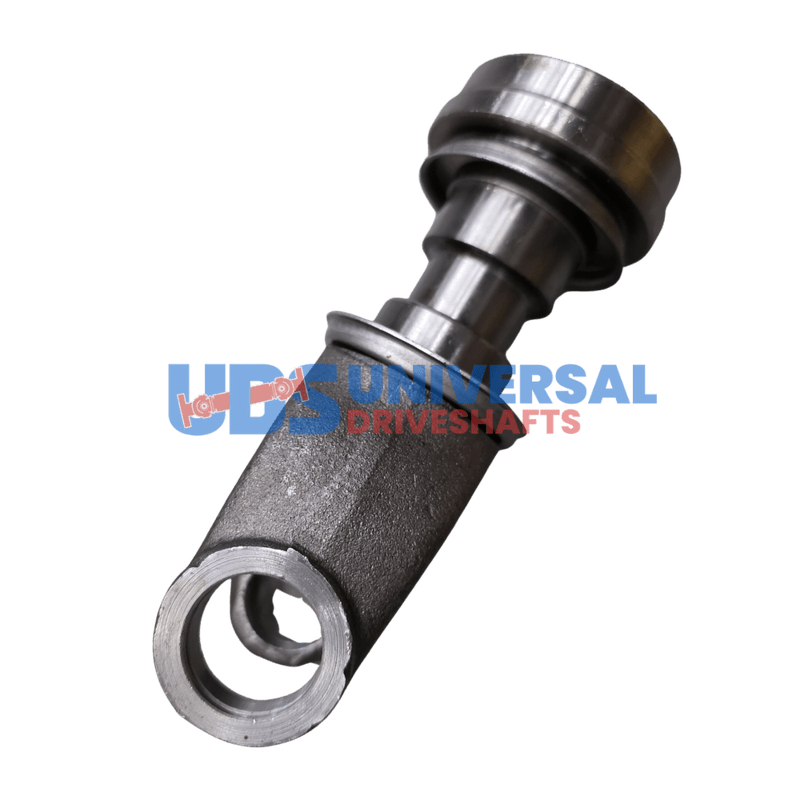

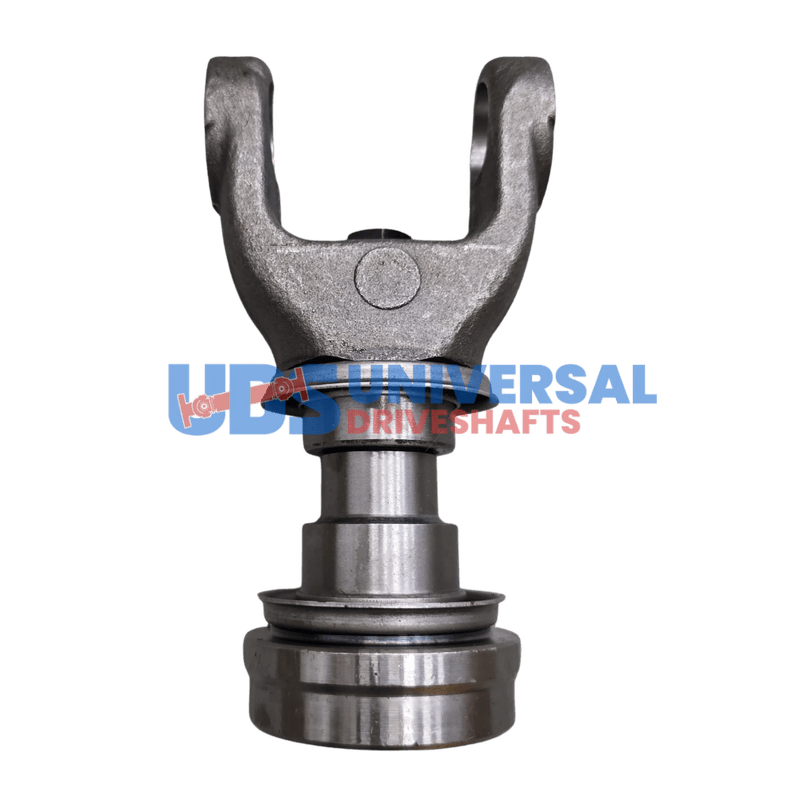

MDS27-746 – Steel Slip Assembly 1330 Series – 28 Splines X 1.100 Dia, Fits tube 2.500×0.065

MDS27-746 is a robust steel slip assembly that features a 1.100″ spline diameter and 28 splines, making it a reliable choice for your driveline needs. This component belongs to the 1330 Series, which is known for its compatibility and performance in various applications. The assembly is designed to fit a tube size of 2.500X0.065, ensuring a snug fit and effective power transfer.

One of the critical aspects of the MDS27-746 is its butt diameter of 2.381″, which is essential for maintaining alignment and stability in the driveline system. If you mistakenly use a slip assembly with a different butt diameter, you risk misalignment, which can lead to premature wear or even failure of the driveline components.

Additionally, the MDS27-746 has a centerline to weld measurement of 5.250″ and a bearing size of 1.102″ (28MM), which are crucial for ensuring proper installation and functionality. When installing, always double-check these measurements to avoid complications.

• 1.100″ spline diameter for a precise fit
• 28 splines for enhanced torque transfer
• Fits tube size 2.500X0.065 for compatibility
• Butt diameter of 2.381″ for alignment
• Centerline to weld: 5.250″ for accurate installation

Overall, the MDS27-746 slip assembly is a vital component for any driveline system requiring durability and precision. Ensure you select this specific assembly to avoid compatibility issues that can arise from using incorrect dimensions.
