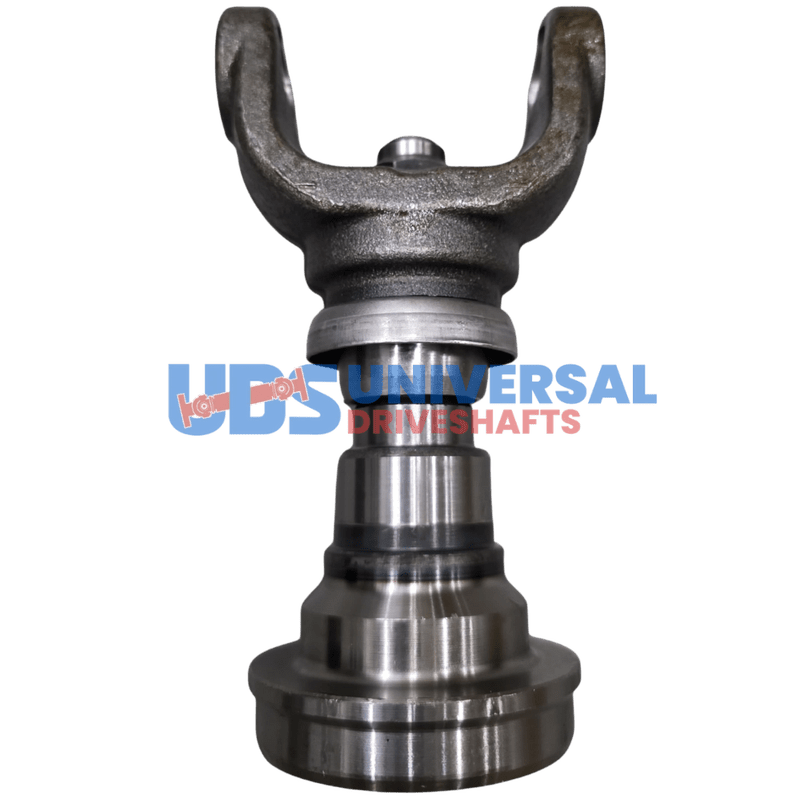

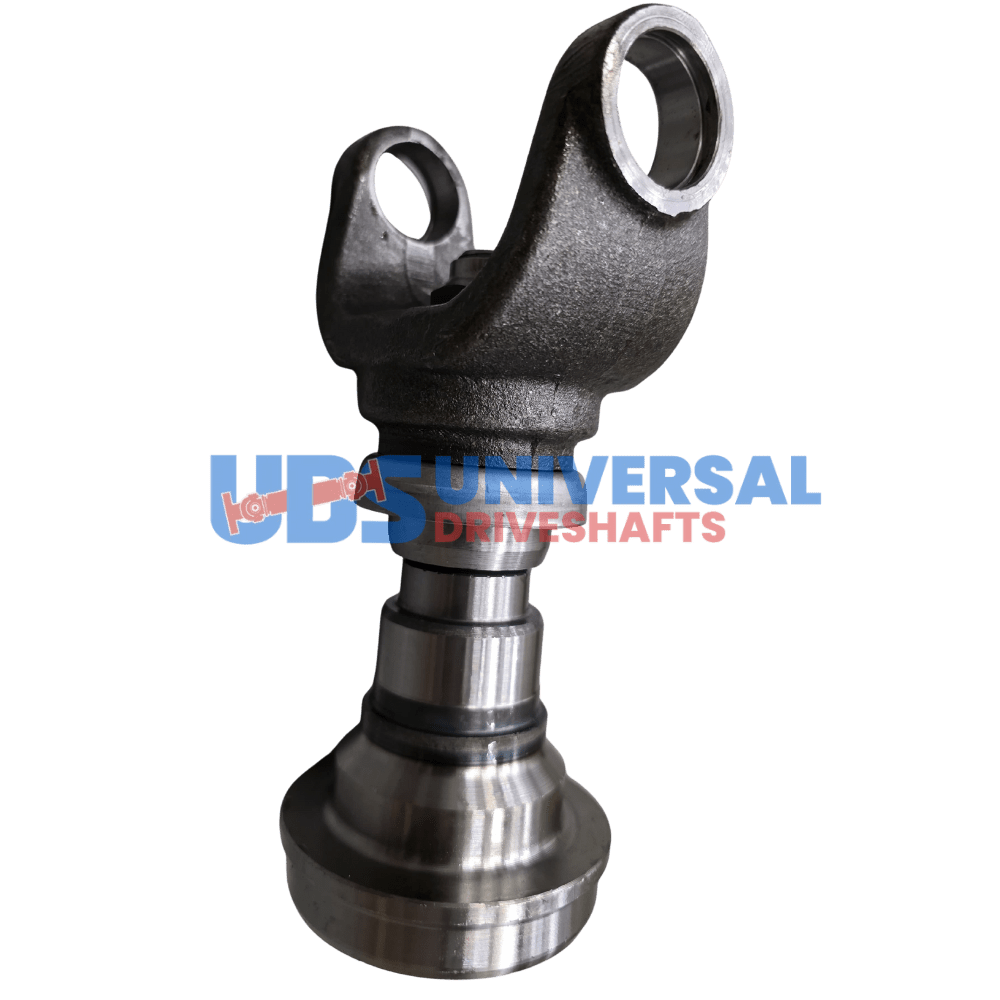

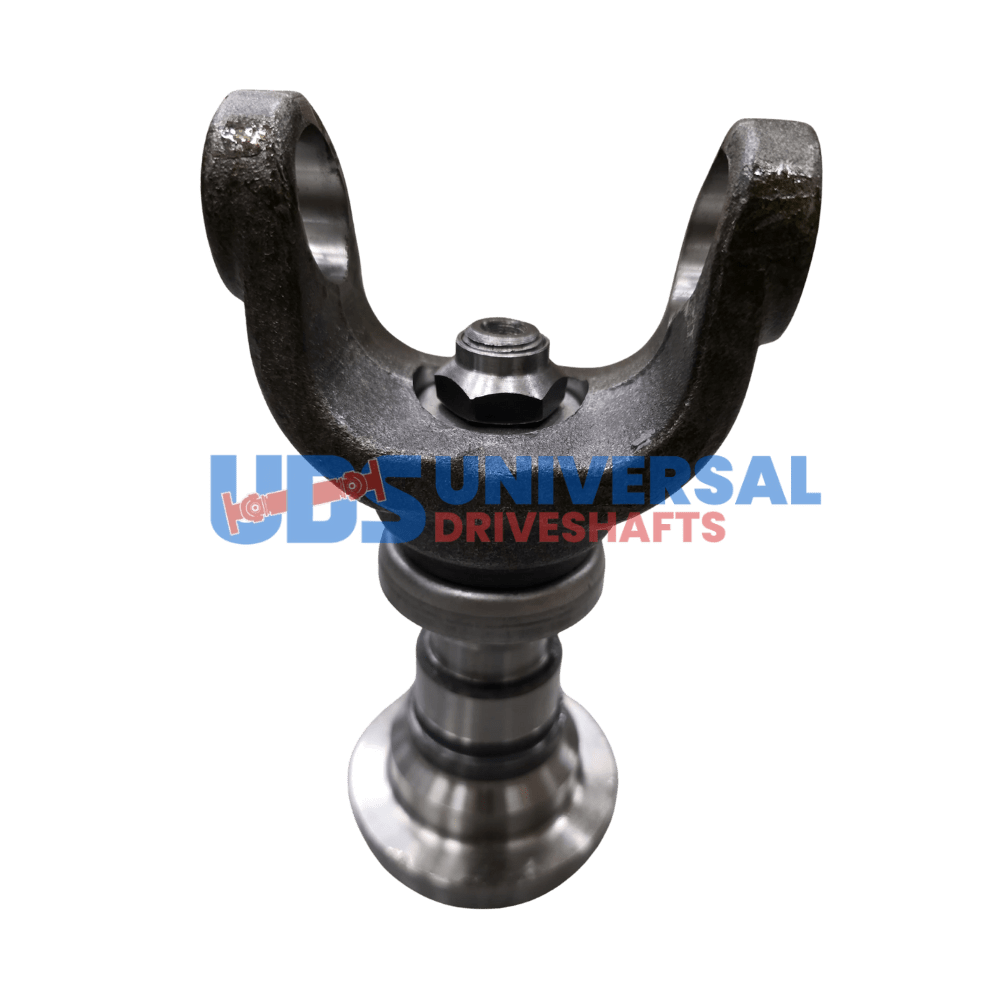

MDS27-154 – Steel Slip Assembly 1330 Series – Fits tube 3.000×0.083
$66.74
10 in stock
Description
MDS27-154 is a crucial component for anyone dealing with driveline issues, particularly in 1330 Series applications. If you’re experiencing vibrations or misalignment in your driveline, this steel slip assembly is designed to address those problems effectively. With a spline diameter of 1.146″ and 26 splines, it provides a robust connection that can handle the demands of high-torque applications.
One common scenario is when a technician notices excessive play or slippage in the driveshaft. This often points to a worn or damaged slip assembly. The MDS27-154 fits a tube size of 3.000×0.083, making it compatible with various setups. Additionally, it features a butt diameter of 2.845″ and requires welding to a center line of 6 inches for optimal performance. This specific configuration ensures that the assembly maintains its integrity under load, reducing the risk of failure.
When installing the MDS27-154, keep in mind that it is designed for use with a bearing size of 1.181″ (30MM). Proper alignment during installation is critical to avoid future issues. Here are some installation tips:
- Ensure the weld is clean and free of contaminants.
- Align the assembly accurately to prevent misalignment.
- Check for any signs of wear on mating components.
By using the MDS27-154, you can restore reliability to your driveline system and eliminate those troublesome vibrations.
| Series | 1330 |
|---|---|
| Splines count | 26 |
| Splines dia | 1.146 |
| Fits to tube | 3.000×0.083 |
| Butt dia | 2.845 |
| Notes | Weld to center Line: 6 Inch – For Bearing: 1.181 Inch ( 30MM ) |
| Material | STEEL |
| Brand | UDS |
