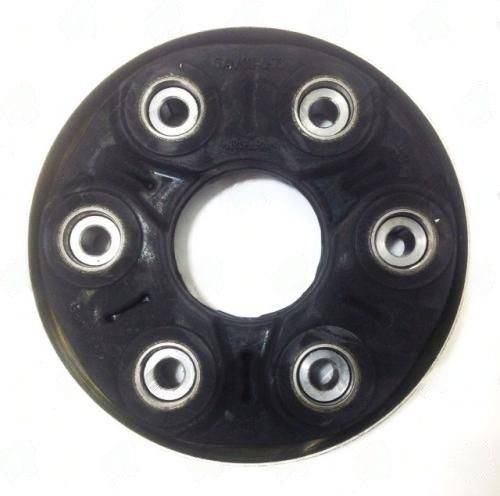

GAV01-003 – Rubber Flex Disc – Vw Application – Bolt Circle Dia 105MM – Disc Width 26MM
$87.70
0 in stock
17 People watching this product now!
Description
Gav01-003 Rubber Flex Disc for VW — 105MM bolt circle | 6 holes | 10MM dia | 26MM wide. Proven rubber coupling. Match bolt circle to both flanges.
Full Description
The GAV01-003 rubber flex disc is the rubber driveshaft coupling used on VW European and import vehicles in place of a u-joint. It flexes to absorb angular movement and vibration between the transmission output flange and the driveshaft — without the velocity variation that a standard u-joint produces at high operating angles. A cracked or hardened GAV01-003 rubber flex disc causes driveline clunk and vibration that looks like a u-joint problem but requires a completely different fix.
Gav01-003 Rubber Flex Disc — VW Bolt Pattern & Dimensions
The GAV01-003 rubber flex disc specs: 105MM bolt circle | 6 holes | 10MM dia | 26MM wide. Includes steel shield... A3, TT, S3, Leon, Altea, Octavia, Golf, Bora, Caddy, Passat, New Beetle. Bolt circle diameter is the critical measurement — it has to match both the transmission output flange and the driveshaft input flange simultaneously. Disc width determines the angular flex range. Under-rated rubber fatigues fast; over-rated rubber transmits vibration instead of absorbing it.
Flex disc replacement is straightforward: six bolts out, new GAV01-003 rubber flex disc in, torque to spec. The one mistake to avoid is reusing rubber that feels firm but shows fine surface cracking — hardened rubber can't flex properly and the vibration it was supposed to absorb gets passed directly to the chassis.
Key Features
- Application: VW
- Bolt circle: 105MM — must match both flanges exactly
- Bolt holes: 6 — confirm hole count matches your flange
- Bolt hole dia: 10MM
- Disc width: 26MM — controls angular flex range
- Rubber coupling — absorbs vibration and angular movement without u-joint velocity variation
- Direct swap — no modification required
- Note: Includes steel shield... A3, TT, S3, Leon, Altea, Octavia, Golf, Bora, Caddy, Passat, New Beetle
Specifications
- SKU: GAV01-003
- Brand: UDS
- Application: VW
- Bolt Circle: 105MM
- Bolt Holes: 6
- Bolt Hole Dia: 10MM
- Disc Width: 26MM
- Notes: Includes steel shield... A3, TT, S3, Leon, Altea, Octavia, Golf, Bora, Caddy, Passat, New Beetle
Additional information
| Application | VW |
|---|---|
| Bolt circle dia | 105MM |
| Bolt hole count | 6 |
| Bolt hole dia | 10MM |
| Disc width | 26MM |
| Notes | Includes steel shield… A3, TT, S3, Leon, Altea, Octavia, Golf, Bora, Caddy, Passat, New Beetle |
| Partn number | GAV01-003 |
| Pilot dia | INVERTED 18MM |
