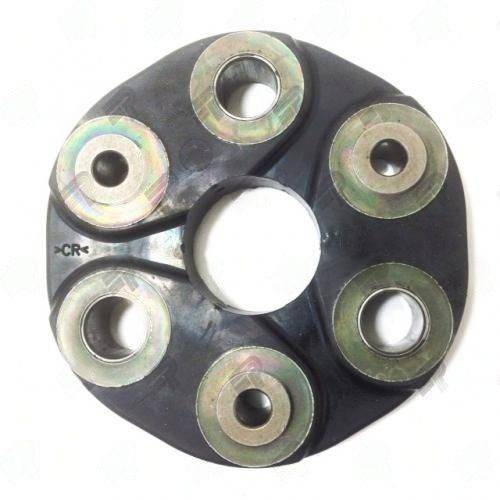

GAV-26 – Rubber Flex Disc – Vw Application – Bolt Circle Dia 96MM – Disc Width 25/29MM

Replacing a worn flex disc before it fails completely is far cheaper than dealing with the driveshaft damage that follows sudden disc rupture. The GAV-26 is a quality rubber flex disc for VW drivetrains, sized at 96MM bolt circle and 25/29MM disc width with 6 bolt holes at 21MM.

Cost of Neglect vs. Cost of Prevention

A rubber flex disc costs a fraction of the labor to repair a driveshaft that has separated from the transmission flange. Worse, a failed disc at highway speed can allow the driveshaft to drop, damaging the driveshaft tunnel and creating a dangerous handling situation. The GAV-26 is the inexpensive insurance that keeps this from happening. Replace on the manufacturer's recommended interval or at the first sign of rubber deterioration.

Part Specifications

Construction Quality

The GAV-26 uses a multi-layer rubber construction with embedded fabric reinforcement where needed. Steel inserts are bonded under compression to resist the separating forces created during hard acceleration and engine braking. The bolt holes are reinforced with steel bushings to prevent elongation under the clamping loads applied by the driveshaft and transmission flange bolts.

Installation Overview

• Support the driveshaft weight before removing the flex disc bolts
• Note the direction of bolt orientation -- alternating transmission and driveshaft side
• Inspect transmission output flange for cracks or corrosion before refitting
• Install GAV-26; hand-tighten all bolts before applying final torque
• Torque to vehicle manufacturer specification
• Test drive and confirm no vibration or noise from driveshaft area

Ready to Ship

Universal Driveshafts stocks the GAV-26 and complete flex disc assortments for VW and other European and domestic makes. Order by 2 PM for same-day dispatch. Our team is here to verify fitment if you have questions.
