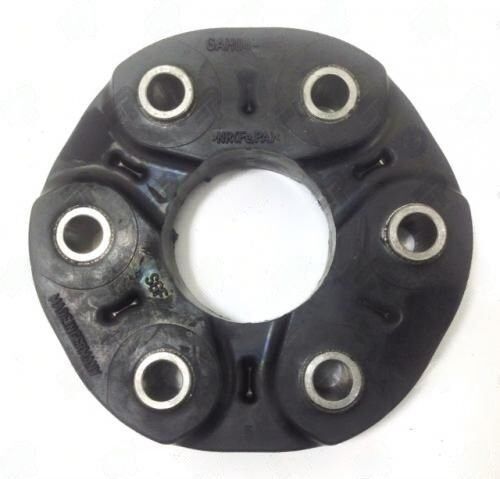

GAH04-005 – Rubber Flex Disc – Hyundai Application – Bolt Circle Dia 105MM – Disc Width 35MM

Smooth, vibration-free power delivery defines the driving experience of vehicles using flex disc driveshaft couplings. When the rubber deteriorates, the first symptom is often a shudder under load or a thud when engaging drive or reverse. The GAH04-005 rubber flex disc restores the elastic coupling for HYUNDAI vehicles: 105MM bolt circle, 35MM width, 6 bolt holes at 12MM.

NVH Role of the Flex Disc

The flex disc does more than transmit torque -- it isolates the driveshaft from the transmission's torsional pulses. Each cylinder firing produces a brief torque spike; without isolation these spikes propagate as audible driveline clatter. The rubber elements of the GAH04-005 absorb these spikes and smooth the torque curve seen by the rear driveshaft and differential, directly reducing cabin noise and improving shift quality perception.

Specifications

Identifying a Failed Flex Disc

Visual inspection is straightforward: with the vehicle on a lift and transmission in park, shine a light on the flex disc and look for radial cracks in the rubber, whitening of the rubber near bolt inserts (indicating over-stress), or separation between rubber and metal. Also check for any misalignment between the bolt flanges that would indicate a collapsed pilot center. Any of these findings calls for immediate replacement with the GAH04-005.

Installation Tips

• Clean the transmission and driveshaft bolt faces to remove old rust and grime
• Use new stretch bolts if your application requires them (some HYUNDAI models do)
• Alternate fastening: start bolts but do not torque until all are threaded
• Torque in a star pattern to seat the disc evenly
• A small amount of rubber deflection under torque is normal -- do not over-tighten

In Stock at Universal Driveshafts

We carry rubber flex discs for HYUNDAI and many other vehicle families. The GAH04-005 is stocked for fast dispatch. Use our fitment checker or call our technical line to confirm this is the correct disc for your model year and drivetrain configuration.
