GAF01-002 – Rubber Flex Disc – Ford Application – Bolt Circle Dia 120MM – Disc Width 43.5MM

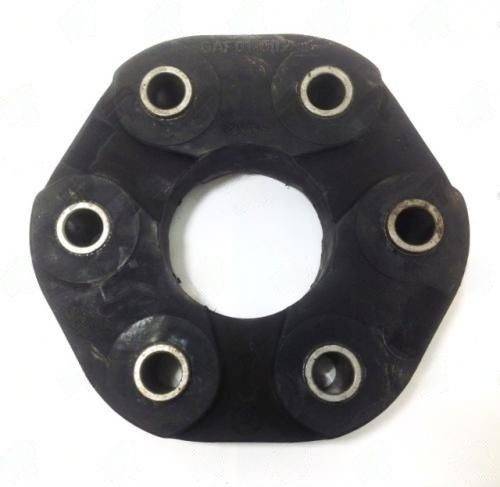

Replacing a worn flex disc before it fails completely is far cheaper than dealing with the driveshaft damage that follows sudden disc rupture. The GAF01-002 is a quality rubber flex disc for FORD drivetrains, sized at 120MM bolt circle and 43.5MM disc width with 6 bolt holes at 14MM.

Cost of Neglect vs. Cost of Prevention

A rubber flex disc costs a fraction of the labor to repair a driveshaft that has separated from the transmission flange. Worse, a failed disc at highway speed can allow the driveshaft to drop, damaging the driveshaft tunnel and creating a dangerous handling situation. The GAF01-002 is the inexpensive insurance that keeps this from happening. Replace on the manufacturer's recommended interval or at the first sign of rubber deterioration.

Part Specifications

Construction Quality

The GAF01-002 uses a multi-layer rubber construction with embedded fabric reinforcement where needed. Steel inserts are bonded under compression to resist the separating forces created during hard acceleration and engine braking. The bolt holes are reinforced with steel bushings to prevent elongation under the clamping loads applied by the driveshaft and transmission flange bolts.

Installation Overview

• Support the driveshaft weight before removing the flex disc bolts
• Note the direction of bolt orientation -- alternating transmission and driveshaft side
• Inspect transmission output flange for cracks or corrosion before refitting
• Install GAF01-002; hand-tighten all bolts before applying final torque
• Torque to vehicle manufacturer specification
• Test drive and confirm no vibration or noise from driveshaft area

Ready to Ship

Universal Driveshafts stocks the GAF01-002 and complete flex disc assortments for FORD and other European and domestic makes. Order by 2 PM for same-day dispatch. Our team is here to verify fitment if you have questions.
