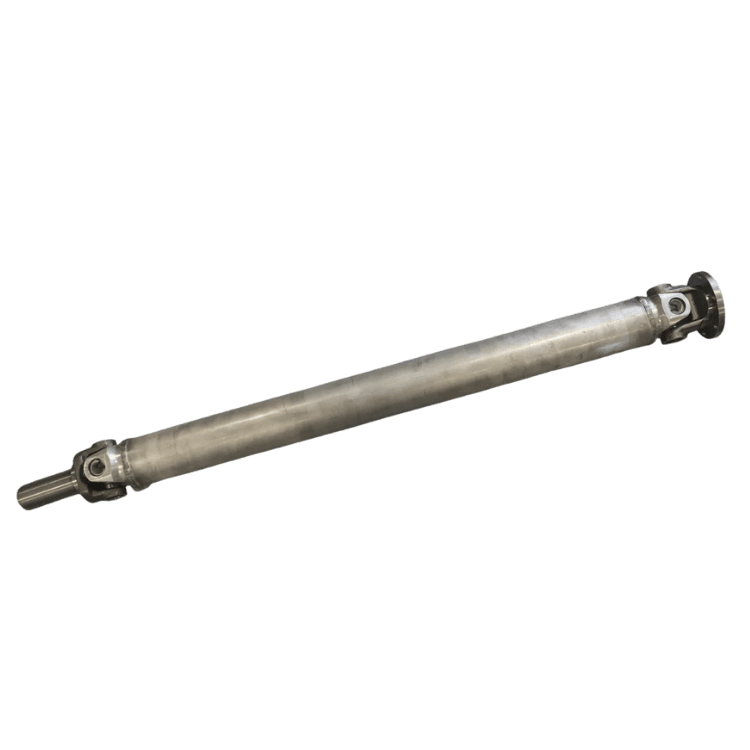

Customized Steel Driveshaft built with 3.500×0.083 DOM Tube up to 60” UP To 1,000 HP For u joint application 1310 , 1330 , 1350 , 1410 , 3R

Customized for your specific needs, this steel driveshaft is built using a robust 3.500″ diameter DOM tube with a wall thickness of 0.083 inches. With a maximum length of 60 inches, it’s designed to handle torque loads up to 1,000 HP, making it suitable for high-performance applications. This driveshaft fits U-joint applications in the 1310, 1330, 1350, and 3R series, ensuring compatibility with a wide range of vehicles.

Before installation, double-check the U-joint series to avoid mismatches. A common oversight is using the wrong series, which can lead to failure under load. Ensure that the driveshaft length is measured accurately from flange-to-flange or centerline-to-centerline. This driveshaft is engineered to exceed 6200 RPM, so it’s crucial to verify that your setup can handle these speeds.

• Check the tube diameter: 3.500″
• Ensure the max length is 60” for your application
• Confirm U-joint compatibility: 1310, 1330, 1350, 3R
• Inspect for proper phasing and runout before installation
• Torque all fasteners to specification for optimal performance

With its grease-for-life U-joints featuring triple seal technology, this driveshaft minimizes maintenance while maximizing reliability. Customized for performance, it’s a solid choice for any serious builder or fleet technician.
