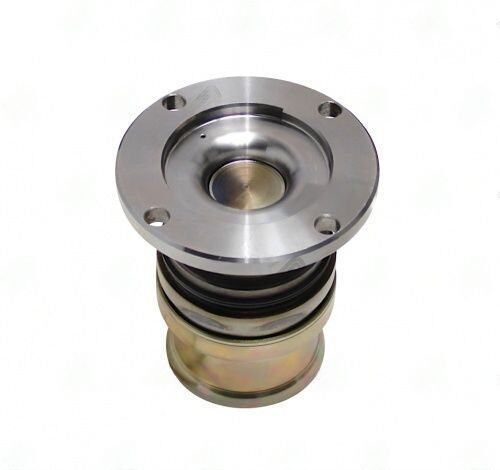

9994-01 – Cv Double Joints Heads – CVJ Series – Bolt Circle Dia 3.925″ – Pilot Dia 2.875F

The 9994-01 CV double joint head is the flange-side assembly for constant velocity driveshafts operating at steep angles — SAS builds, long travel suspensions, transfer case drop kits. It provides the ball socket centering mechanism that prevents velocity variation through the joint's full operating range. The 9994-01 CV double joint head requires exact pilot diameter and bolt circle to seat correctly on the axle or diff flange.

9994-01 Cv Double Joint Head — Series: CVJ. Bolt Circle & Pilot Specs

Series: CVJ. The 9994-01 CV double joint head specs: 3.925 bolt circle | 2.875F pilot | N/A" butt dia | 0" end-to-weld. Bravada CV Joint. Pilot diameter is critical for the centering ball mechanism — a loose pilot allows the CV head to walk off-center at high angles, which defeats the entire purpose of the CV design. End-to-weld factors into compressed driveshaft length calculations.

Before ordering the 9994-01 CV double joint head, measure your existing flange bolt circle and pilot in millimeters or decimal inches. European and Toyota flanges vary by year and application — spec sheet data isn't always reliable on swapped or modified vehicles. Measure the actual flange.

Key Features

• Series: CVJ
• Bolt circle: 3.925 — must match flange bolt pattern exactly
• Pilot dia: 2.875F — centers CV head on flange, critical for CV function
• Butt dia: N/A" — driveshaft tube connection point
• End-to-weld: 0" — factors into compressed shaft length
• Tube fit: 0.000X0.000
• CV double joint design — eliminates velocity variation at steep operating angles
• Note: Bravada CV Joint

Specifications

• SKU: 9994-01
• Brand: UDS
• Series: CVJ
• Bolt Circle: 3.925
• Pilot Dia: 2.875F
• Butt Dia: N/A"
• End to Weld: 0"
• Tube Fit: 0.000X0.000
• Notes: Bravada CV Joint
