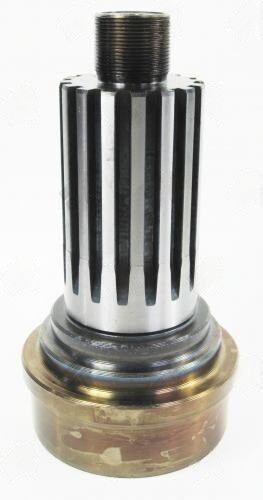

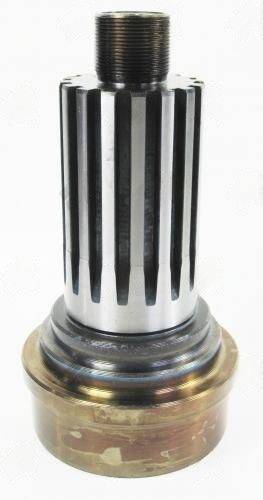

6-53-311 – Stub & Midship Shaft – 16 X 2.350 Splines – Bearing Dia 2.362″ – Tube Dia Wall 4.000X0.134
$85.21
Description
When you encounter vibrations or noise during acceleration, it might be time to consider the 6-53-311 Stub & Midship Shaft. This component is essential for transmitting torque from the transmission to the differential, and any wear or misalignment can lead to significant driveline issues. The 6-53-311 features a robust 16 X 2.350 spline configuration, which ensures a secure fit and optimal torque transfer. With a bearing diameter of 2.362 inches and a tube wall thickness of 0.134 inches, this shaft is engineered to withstand demanding conditions.
Installation of the 6-53-311 requires careful attention to detail. Ensure that the spline count and diameter match your transmission output or transfer case specifications. The length of 2.625 inches for the splines and an end-to-weld measurement of 5.312 inches are critical to achieving the correct fitment. If you notice any vibrations post-installation, it’s advisable to check the runout and balance the assembly to avoid further complications.
- Verify spline count and diameter match your application.
- Check the tube diameter and wall thickness for compatibility.
- Ensure proper phasing during installation to prevent vibrations.
By addressing these details, the 6-53-311 Stub & Midship Shaft can help restore your driveline’s performance and reliability.
| Bearing dia | 2.362 |
|---|---|
| Butt dia | 3.734 |
| End to weld | 5.312 |
| Partn number | 6-53-311 |
| Remaining stock | <10 |
| Splines count dia | 16 X 2.350 |
| Splines length | 2.625 |
| Tube dia | 4.000" |
| Tube wall | 0.134" |
| Style | FIXED |
