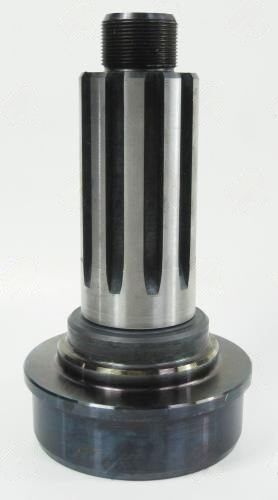

6-53-201 – Stub & Midship Shaft – 10 X 1.958 Splines – Bearing Dia 1.968″ – Tube Dia Wall 4.000X0.134
$59.54
14 People watching this product now!
Description
The 6-53-201 Stub & Midship Shaft features 10 X 1.958 splines and a 1.968″ bearing diameter, ensuring reliable torque transfer.
Full Description
The 6-53-201 Stub & Midship Shaft is engineered to deliver precise torque transfer from the transmission to the differential. With a spline count of 10 X 1.958, this shaft is designed to handle significant loads while maintaining balance and stability. The bearing diameter measures 1.968 inches, which is critical for ensuring a snug fit within the assembly and minimizing play that could lead to premature wear.
One of the key aspects of the 6-53-201 is its tube diameter of 4.000 inches and wall thickness of 0.134 inches. This configuration strikes a balance between strength and weight, allowing the shaft to withstand high torque loads without excessive mass. The end-to-weld length of 5.156 inches and spline length of 2.875 inches are tailored to fit specific applications, ensuring that the shaft integrates seamlessly into the driveline system.
- Verify spline count and dimensions for compatibility.
- Check phasing marks during installation to prevent vibration issues.
- Torque all fasteners to the manufacturer's specifications.
- Inspect for runout and balance to ensure optimal performance.
In summary, the 6-53-201 Stub & Midship Shaft is a vital component for any driveline system requiring reliable torque transmission and critical speed management. Its design reflects years of engineering expertise, making it a dependable choice for fabrication shops and performance builders alike.
Additional information
| Bearing dia | 1.968 |
|---|---|
| Butt dia | 3.734 |
| End to weld | 5.156 |
| Partn number | 6-53-201 |
| Splines count dia | 10 X 1.958 |
| Splines length | 2.875 |
| Tube dia | 4.000" |
| Style | FIXED |
| Tube wall | 0.134" |
