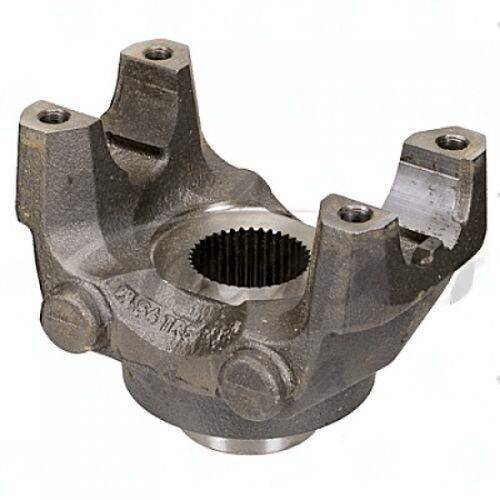

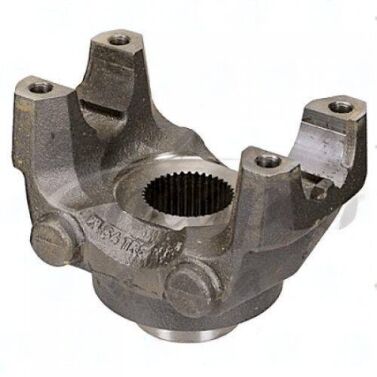

6-4-7141-1 – End Yoke – 1710 Series – 1.998″ Splines Dia – 2.810″ Hub Dia
$136.47
1 in stock
Description
The 6-4-7141-1 End Yoke plays a crucial role in connecting the driveshaft to the transmission, transfer case, or differential. This component features a 1710 Series design, which is essential for ensuring compatibility with the corresponding U-joint. With a spline diameter of 1.998″ and a total of 38 splines, this yoke provides a robust interface for reliable power transfer.
In applications requiring a coupling shaft yoke, the 6-4-7141-1 is engineered to handle the axial movement necessary during suspension travel. The hub diameter measures 2.810″, and the yoke extends 5.000″ from the center joint to the end, making it suitable for various driveline configurations. The through hole of 3.000″ allows for easy installation and alignment.
- Verify spline count and diameter before installation.
- Ensure proper phasing with the opposite yoke to prevent vibrations.
- Check spline engagement depth to avoid premature wear.
- Use appropriate torque specifications for bolting to companion flanges.
When working with the 6-4-7141-1, it’s important to remember that this yoke is designed specifically for coupling shaft applications. Proper installation and maintenance will ensure optimal performance and longevity in your driveline system.
| Cj to end | 5.000" |
|---|---|
| Hub dia | 2.810" |
| Notes | COUPLING SHAFT YOKE |
| Partn number | 6-4-7141-1 |
| Series | 1710 |
| Splines count | 38 |
| Splines dia | 1.998 |
| Style | HR |
| Through hole | 3.000" |
