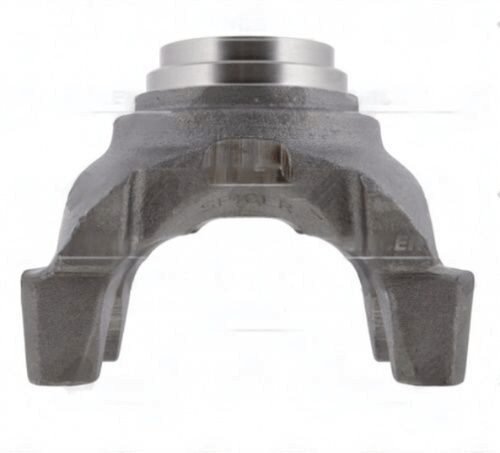

The 6-4-7481-1 coupling shaft yoke is part of the 1710 series, designed for heavy-duty applications. It features a spline count of 46 and a spline diameter of 2.390 inches. The hub diameter measures 2.875 inches, with a through hole diameter of 2.750 inches. The centerline to end distance is 4.938 inches, and this yoke is classified as an HR style. Manufactured by Spicer, it incorporates a counterbore at the hub end, enhancing its fit and performance in various applications.
$92.04
| Weight | 10 lbs |
|---|---|
| Dimensions | 25 × 18 × 10 in |
| CJ TO END | 4.938 |
| HUB DIA | 2.875 |
| Partn number | 6-4-7481-1 |
| SERIES | 1710 |
| SPLINES COUNT | 46 |
| SPLINES DIA | 2.390" |
| STYLE | HR |
| Through hole | 2.750" |
