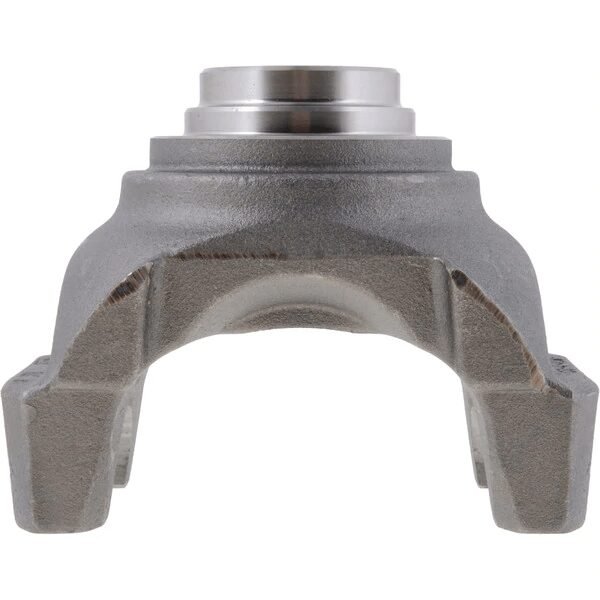

6-4-1981 – End Yoke – 1710 Series – 1.960″ Splines Dia – 2.812″ Hub Dia
$122.59
1 in stock
Description
When you encounter a vibration or clunking noise during acceleration, it might be time to check the yoke. The 6-4-1981 End Yoke is designed specifically for COUPLING SHAFT YOKE applications, connecting your driveshaft to the transmission, transfer case, or differential. With a 1710 Series configuration, this yoke features 10 splines with a diameter of 1.960″ and a hub diameter of 2.812″. These specifications ensure compatibility with the right U-joint, allowing for smooth operation and effective power transfer.
One common issue arises when the spline engagement depth is insufficient, leading to premature wear or failure. The 6-4-1981 addresses this by providing a robust design that fits securely, ensuring proper alignment and phasing with the opposite yoke. Additionally, the 5.000″ Cj to end measurement and a through hole of 3.000″ make installation straightforward, reducing the risk of misalignment.
- Check spline count and diameter before installation.
- Ensure proper phasing with the opposite yoke to avoid vibrations.
- Inspect the hub diameter for compatibility with your U-joint.
Remember, never force spline entry; it can lead to damage. By choosing the 6-4-1981 End Yoke, you’re ensuring a reliable connection in your driveline system.
| Cj to end | 5.000" |
|---|---|
| Hub dia | 2.812 |
| Notes | COUPLING SHAFT YOKE |
| Partn number | 6-4-1981 |
| Series | 1710 |
| Splines count | 10 |
| Splines dia | 1.960" |
| Style | BP |
| Through hole | 3.000" |
