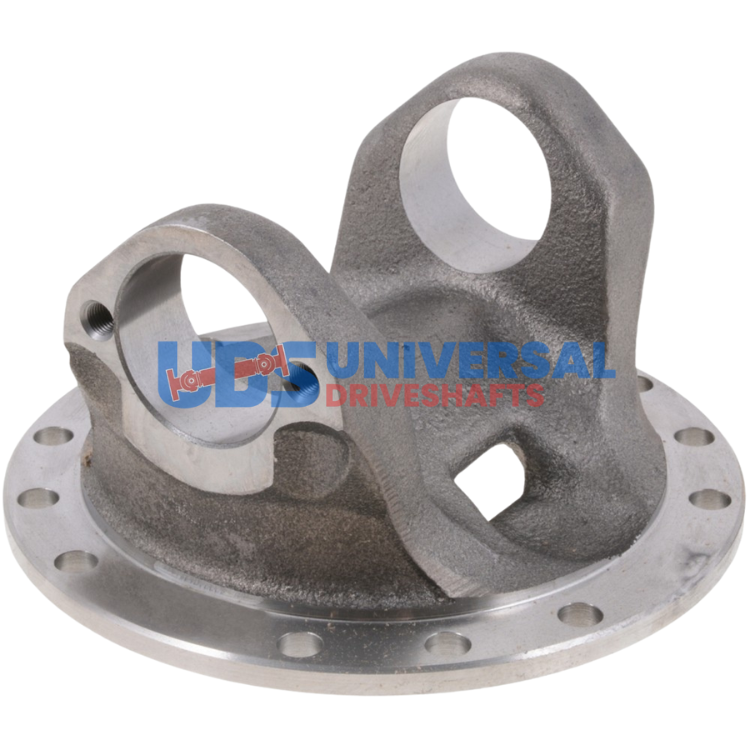

6-2-779 Flange Yoke 1710 Series ,Holes: 12 x 0.438 Holes, Bolts Circle Diameter: 7.250, Pilot: 7.750M
$139.68
+50 in stock
18 People watching this product now!
Description
The Flange Yoke 6-2-779 is designed for the 1710 series and features a robust bearing plate style suitable for heavy-duty applications. It has a pilot diameter of 7.750 inches (male) and a flange or swing diameter of 8.000 inches. The yoke includes a cap with a diameter of 1.938 inches and a width of 6.094 inches.
The bolt circle measures 7.750 inches and is fitted with eight drilled bolt holes, each with a diameter of 0.438 inches. The distance from the flange face to the center line is 3.00 inches. The flange yoke is constructed from steel and is designed to handle significant torque and impact.
Additional information
| Bolt circle dia | 7.250 |
|---|---|
| Bolt hole dia | 0.438 |
| Cj to flat | 3.000 |
| Partn number | 6-2-779 |
| Pilot dia | 7.750 ,M |
| Series | 1710 |
| Bolt Holes | 12 |
