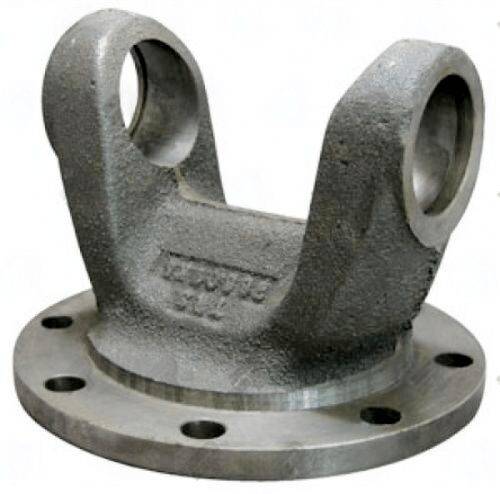

5102-1582 – Flange Yokes – 1510 Series – Bolt Circle Dia 5.120″ – Cj To Flat 3.240

When installing the 5102-1582 Flange Yoke, it’s crucial to ensure proper fitment for optimal performance. This yoke serves as the connection point between your driveshaft and the powertrain or axle assembly, specifically designed for 1510 Series applications. Key specifications include a bolt circle diameter of 5.120 inches, a bolt hole diameter of 0.472 inches, and a CJ to flat measurement of 3.240 inches.

Before installation, verify the spline count to ensure compatibility with the mating component. A common mistake is mismatching spline counts, which can lead to significant driveline issues. Always check the phasing with the opposite yoke to maintain proper alignment during operation.

• Check spline engagement depth before sliding the yoke onto the shaft.
• Ensure the bolt holes align correctly with the companion flange.
• Use a torque wrench to tighten bolts to the manufacturer’s specifications.
• Inspect the mating components for wear or damage before installation.
• Confirm the pilot diameter is compatible with your setup.

The 5102-1582 Flange Yoke is engineered to handle the demands of high-performance and heavy-duty applications, making it a reliable choice for your driveline needs. Remember, proper installation is key to preventing premature wear and ensuring smooth operation.
