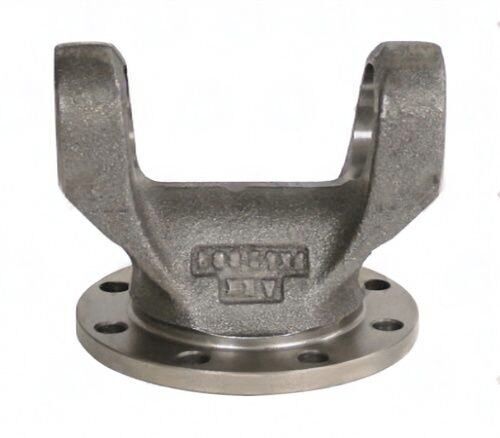

The 5102-1280 Flange Yoke from the 1510 Series is designed for high-performance applications, featuring a robust build and precise dimensions. It includes a 4.000-inch bolt circle diameter and 8 bolt holes with a 0.394-inch diameter. The yoke has a 3.000-inch center of joint (CJ) to flat measurement and a pilot diameter of 2.950 inches. This model comes with a female pilot type and is well-suited for various heavy-duty and industrial applications.
$102.09
| Weight | 5 lbs |
|---|---|
| Dimensions | 25 × 18 × 10 in |
| Bolt Circle Dia | 4.000 |
| Bolt Hole Dia | 0.394, 8HOLES |
| CJ TO FLAT | 3.000 |
| Partn number | 5102-1280 |
| Pilot dia | 2.950, F |
| SERIES | 1510 |
