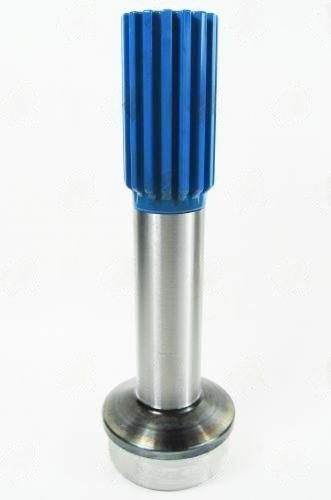

5-40-1011 – Stub & Midship Shaft – 16 x 2.000 Splines – Butt Dia 3.250″ – End To Weld 9.688
$72.04
Description
5-40-1011 is a Stub & Midship Shaft that plays a crucial role in torque transmission from the transmission to the differential. If you’re experiencing vibrations or unusual noises during acceleration, the condition of your stub and midship shaft could be the culprit. This specific shaft features 16 x 2.000 splines, a 3.250″ butt diameter, and a length of 9.688 inches, making it essential for maintaining proper alignment and function in your driveline.
Worn splines can lead to slippage, while a damaged tube can cause vibrations that affect the entire vehicle. If you notice a 2x-per-revolution vibration, it’s time to inspect this component closely. The 3.500″ tube diameter and 0.134″ wall thickness ensure that this shaft can handle the torque demands of high-performance applications.
- Verify the spline count and diameter match your transmission output.
- Ensure the length from flange to flange is accurate for your application.
- Check for proper phasing during installation to prevent vibrations.
- Torque all bolts to specification to maintain component integrity.
- Balance the assembly if any vibrations persist after installation.
Replacing a worn or damaged stub and midship shaft with the 5-40-1011 restores proper driveline function and enhances vehicle performance. Don’t overlook this critical component in your driveline system.
| Butt dia |
3.250 |
|---|---|
| End to weld |
9.688 |
| Partn number |
5-40-1011 |
| Remaining stock |
>10 |
| Splines count dia |
16 x 2.000 |
| Splines length |
3.500 |
| Tube dia |
3.500 |
| Tube wall |
0.134" |
| Style |
Slip |
