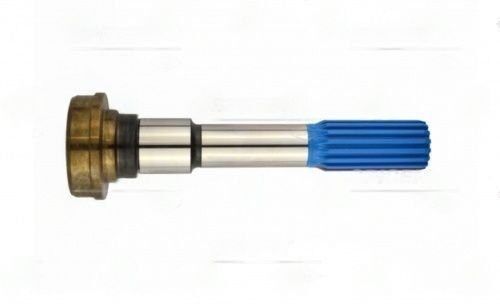

The Splined Midship Tube Shaft (SKU: 3-53-1551) is designed for use with outboard slip yokes, featuring a 1.500×16 spline and Ø3.000 X .083 tube. It includes a bearing diameter of 1.575 inches and a spline length of 3.000 inches. This shaft is engineered with precise dimensions for reliable performance and durability in demanding applications.
$49.46
| Weight | 15 lbs |
|---|---|
| Dimensions | 25 × 18 × 10 in |
| Bearing DIA | 1.574 |
| BUTT DIA | 2.844 |
| END TO WELD | 9.375 |
| Partn number | 3-53-1551 |
| remaining stock | >10 |
| Splines count & Dia | 15/16 x 1.500 |
| SPLINES LENGTH | 3.000 |
| Tube DIA & Wall | 3.000X0.083 |
