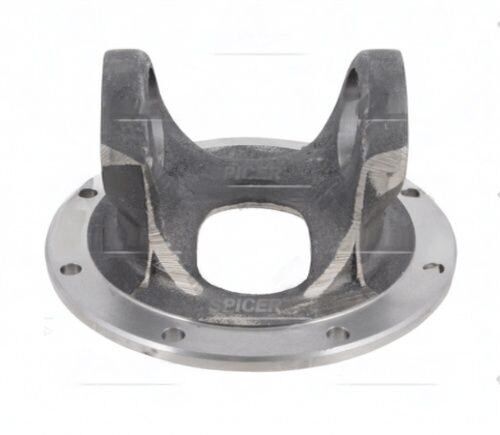

5-2-629 – Flange Yokes – 1610 Series – Bolt Circle Dia 7.250″ – Bolt Hole Dia 0.375

The 5-2-629 flange yoke mounts to the companion flange or axle housing and carries the driveshaft end u-joint. It's not a universal part — the bolt circle, pilot diameter, and series are all specific. Vibration that tracks with vehicle speed and stays consistent under load often starts right here, at a worn or mis-seated flange yoke. The 5-2-629 flange yoke is the correct replacement.

5-2-629 Flange Yoke — 1610 Series Specifications & Fitment

The 1610 series covers Class 5-7 commercial and heavy fleet. The 5-2-629 flange yoke specs: 7.250 bolt circle | 7.750 pilot | 8x0.375 bolt holes | 2.750" CJ-to-flat. Pilot diameter is what centers the yoke on the companion flange — that dimension must match exactly or the driveshaft will run off-center at speed. Bolt circle determines your hole pattern match.

Before ordering the 5-2-629 flange yoke, measure your diff flange bolt circle and pilot diameter directly. Don't rely on series designation alone — after an axle swap, the flange dimensions may differ from the original factory spec. Brand: UDS. Verify, then order.

Key Features

• Series: 1610 — built for Class 5-7 commercial and heavy fleet
• Bolt circle: 7.250 — must match axle/diff flange hole pattern exactly
• Pilot dia: 7.750 — centers yoke on companion flange, no play allowed
• 8 bolt holes at 0.375 — verify hole count and size
• CJ-to-flat: 2.750" — affects driveshaft working angle clearance
• Brand: UDS — direct-fit replacement

Specifications

• SKU: 5-2-629
• Brand: UDS
• Series: 1610
• Bolt Circle: 7.250
• Pilot Dia: 7.750
• Bolt Holes: 8
• Bolt Hole Dia: 0.375
• CJ to Flat: 2.750"
