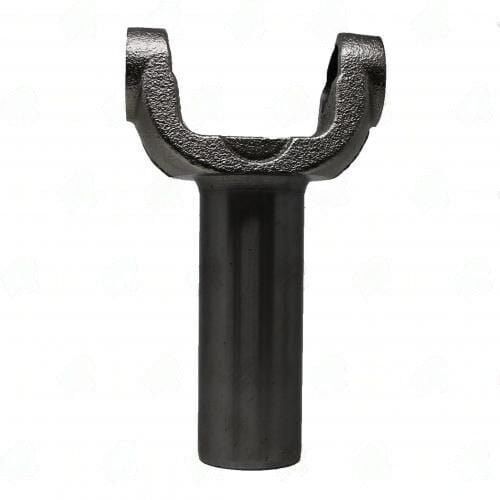

4103-327 – Transmission Yokes – 1410 Series – 31/32 X 1.378 Splines – 1.886″ Hub Dia
$84.42
12 People watching this product now!
Description
The 4103-327 Transmission Slip Yoke is designed for various 32-spline transmissions, including Turbo 400 (TH400) long tail shaft, 4L80E long tail, 6L50, 6L80E, and GM transfer cases such as 241C, NP205, NP208, NP241, NP241C, NP243, NP246, NP261, and NP263. It features a 1410 series design with an outside snap ring style. Specifications include a U-joint cap diameter of 1.188 inches, a U-joint width of 4.188 inches, and a slip yoke length of 6.938 inches from the centerline to the end of the spline. The barrel diameter is 1.886 inches, and the spline diameter is 1.378 inches, with 32 splines (31 with blind spots). Made from steel and nickel-plated for durability.
Additional information
| Center u joint to end | 6.938 |
|---|---|
| Counter bore dia | 0 |
| Hub dia | 1.886 |
| Notes | GM, Ford 32 spline transfercase |
| Partn number | 4103-327 |
| Remaining stock | <10 |
| Series | 1410 |
| Splines count dia | 31/32 X 1.378 |
