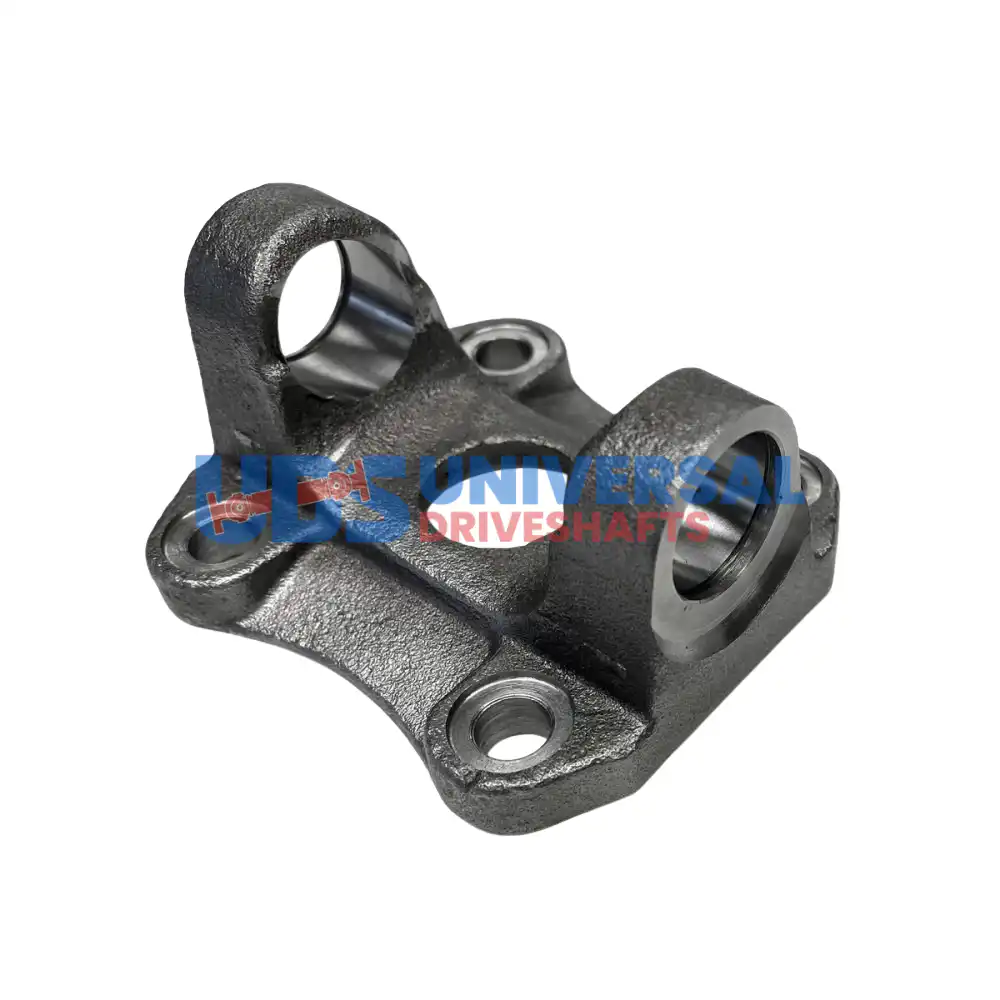

4102-1819 Flange Yoke 1410 Ford Pilot: 2.000 Bolt circle diameter: 4.250 Square pattern 4102-1585
$32.18
+50 in stock
13 People watching this product now!
Description
4102-1819 Flange Yoke — 1410 series, 4.250 bolt circle | 2.000 pilot | 4×0.500 bolt holes | 1.625″ CJ-to-flat. Complete bolt-on replacement. Verify bolt circle and pilot before ordering.
Full Description
When a 1410 series flange yoke fails, the symptoms show up fast: driveline clunk under acceleration, vibration that doesn't go away with speed changes, or visible play at the diff flange. The 4102-1819 flange yoke is the spec-correct replacement — correct bolt circle, correct pilot, correct series. Dimension confirmation before ordering is still the right call.
4102-1819 Flange Yoke — 1410 Series Specifications & Fitment
The 1410 series covers HD trucks — F-250/350/450, Ram 2500/3500, Dana 60/70 axles. The 4102-1819 flange yoke specs: 4.250 bolt circle | 2.000 pilot | 4x0.500 bolt holes | 1.625" CJ-to-flat. Square pattern, Ford trucks with hole in center.. Pilot diameter is what centers the yoke on the companion flange — that dimension must match exactly or the driveshaft will run off-center at speed. Bolt circle determines your hole pattern match.
Before ordering the 4102-1819 flange yoke, measure your diff flange bolt circle and pilot diameter directly. Don't rely on series designation alone — after an axle swap, the flange dimensions may differ from the original factory spec. Brand: UDS. Verify, then order.
Key Features
- Series: 1410 — built for HD trucks — F-250/350/450, Ram 2500/3500, Dana 60/70 axles
- Bolt circle: 4.250 — must match axle/diff flange hole pattern exactly
- Pilot dia: 2.000 — centers yoke on companion flange, no play allowed
- 4 bolt holes at 0.500 — verify hole count and size
- CJ-to-flat: 1.625" — affects driveshaft working angle clearance
- Brand: UDS — direct-fit replacement
- Note: Square pattern, Ford trucks with hole in center.
Specifications
- SKU: 4102-1819
- Brand: UDS
- Series: 1410
- Bolt Circle: 4.250
- Pilot Dia: 2.000
- Bolt Holes: 4
- Bolt Hole Dia: 0.500
- CJ to Flat: 1.625"
- Notes: Square pattern, Ford trucks with hole in center.
Additional information
| Bolt circle dia | 4.250 |
|---|---|
| Bolt hole dia | 0.500 |
| Cj to flat | 1.625 |
| Pilot dia | 2.000 |
| Series | 1410 |
| Bolt Holes | 4 |
| Notes | Square pattern, Ford trucks with hole in center. |
