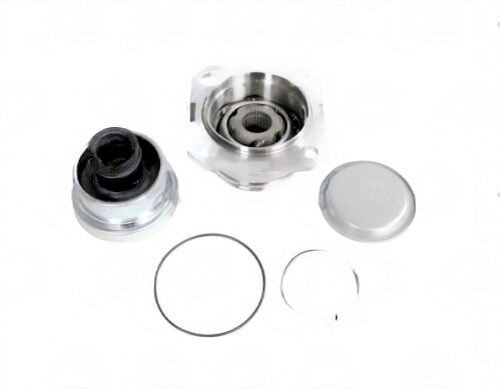

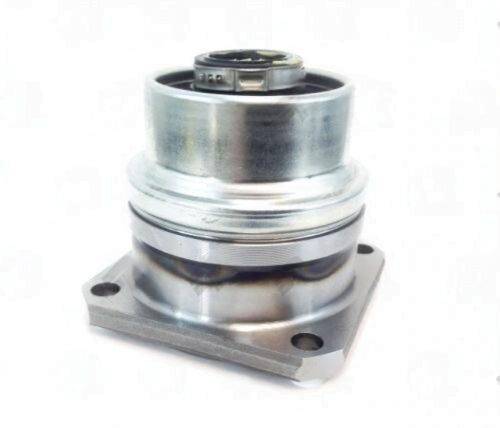

3R52-361 – CV Joint Kit – 30″ Splines Dia – Bolt Hole Dia 10.75″ – 34 Spline
$204.63
1 in stock
Description
The 3R52-361 CV Joint Kit is engineered for robust performance, specifically tailored for high torque applications. This joint features a spline diameter of 30 mm and a total of 34 splines, making it a reliable choice for ensuring constant velocity power transfer at varying angles. The bolt hole diameter measures 10.75 mm, with a bolt hole count of 4, which is critical for proper installation and secure attachment to your driveline components.
One of the standout features of the 3R52-361 is its ability to handle axial plunge, which is essential for accommodating suspension movement without compromising performance. If you’re working on a vehicle that demands precision and reliability, this CV joint kit is designed to deliver just that.
- Key Specifications:
- Spline Count: 34
- Spline Diameter: 30 mm
- Bolt Hole Diameter: 10.75 mm
- Bolt Hole Count: 4
When installing the 3R52-361, ensure that you pack it with the specified grease and use a new boot and clamps to maintain integrity. Failure to do so can lead to common symptoms like clicking noises during turns or premature wear due to grease contamination. By choosing the right CV joint, you ensure optimal performance and longevity in your driveline setup.
| Bolt hole count | 4 |
|---|---|
| Bolt hole dia | 10.75 |
| Splines count | 34 |
| Splines dia | 30 |
