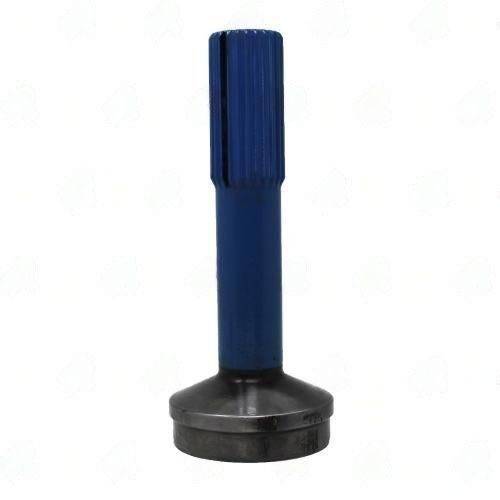

3540-244M – Stub & Midship Shaft – 23/24 X 1.562 Splines – Butt Dia 3.321″ – End To Weld 8.000
$90.35
Description
The 3540-244M Stub & Midship Shaft is engineered to transmit torque efficiently from the transmission to the differential. This specific configuration features 23/24 X 1.562 splines, which are crucial for compatibility with the corresponding U-joint. The butt diameter of 3.321″ ensures a snug fit, while the end-to-weld measurement of 8.000″ is tailored for precise installation in various applications.
One of the key differentiators of the 3540-244M is its tube diameter and wall thickness of 3.500×0.095. This combination not only enhances strength but also helps maintain critical speed limits, reducing the risk of failure due to excessive vibration. If you were to use a shaft with a different wall thickness or diameter, you might encounter issues with balance and durability.
- Verify phasing marks during installation to ensure proper alignment.
- Check the runout to avoid vibrations that can lead to premature wear.
- Torque bolts to the manufacturer’s specifications for optimal performance.
- Balance the shaft if any vibrations are detected post-installation.
In summary, the 3540-244M Stub & Midship Shaft is a reliable choice for those looking to maintain or upgrade their driveline system. Its specific dimensions and spline configuration make it essential for achieving the best performance in your vehicle.
| Butt dia |
3.321 |
|---|---|
| End to weld |
8.000 |
| Partn number |
3540-244M |
| Remaining stock |
<10 |
| Splines count dia |
23/24 X 1.562 |
| Splines length |
3.350 |
| Tube dia |
3.500 |
| Tube wall |
0.095" |
| Style |
Slip |
