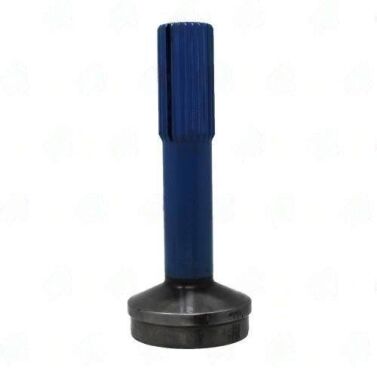

The Slip Tube Shaft (SKU: 3540-244) features a 3.5-inch diameter with a 0.083-inch wall thickness and a 23/24 spline configuration. It has an approximate major outside spline diameter of 1.562 inches, an approximate spline length of 3.350 inches, and a weld-to-end of spline length of 8.000 inches. Designed for precision and durability, this spline stub is ideal for various demanding applications.
$62.38
| Weight | 15 lbs |
|---|---|
| Dimensions | 25 × 18 × 10 in |
| BUTT DIA | 3.344 |
| END TO WELD | 8.000 |
| Notes | optional to use with: 3503-241 / 5503-241 /S3-3-7021x / 4103-241 / 3-3-7001 |
| Partn number | 3540-244 |
| remaining stock | >10 |
| Splines count & Dia | 23/24 X 1.562 |
| SPLINES LENGTH | 3.350 |
| Tube DIA & Wall | 3.500X0.083 |
