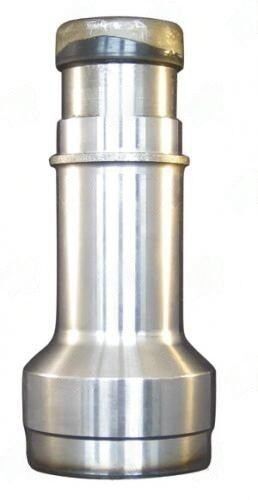

3533-300 is a critical component in your driveline assembly, featuring a 1.500″ spline diameter that ensures a precise fit with compatible driveline components. This dimension is crucial as it directly influences the engagement with the mating parts, allowing for smooth power transfer and reducing the risk of slippage. With 16 splines, this assembly provides a robust connection that can handle significant torque loads, making it suitable for various applications.
The butt diameter of 2.884″ is designed to fit securely within the assembly, ensuring stability during operation. The length from weld to end measures 6.000″, which is essential for maintaining the correct alignment and fitment within the driveline. This length allows for proper clearance and movement, preventing binding or excessive wear on the components.
Constructed from high-quality steel, the 3533-300 is built to withstand the rigors of demanding environments. It fits to a tube size of 3.000×0.065, making it versatile for multiple series applications. When installing, ensure that the splines are clean and free from debris to achieve optimal engagement.
- 1.500″ spline diameter for precise fitment
- 16 splines for enhanced torque handling
- Butt diameter of 2.884″ for secure connection
- End to weld length of 6.000″ for proper alignment
- Fits to tube size of 3.000×0.065
In summary, the 3533-300 is engineered for reliability and performance, making it a valuable addition to your driveline components.
