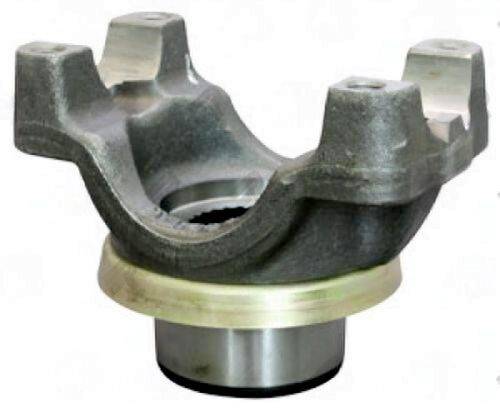

3504-02 – End Yoke – 1.229″ Splines Dia – 1.844″ Hub Dia – 28 Spline
$183.42
1 in stock
Description
When working with the 3504-02 End Yoke, it’s essential to start by confirming that the spline count matches your driveshaft. This yoke features 28 splines with a diameter of 1.229″, which is critical for compatibility. The hub diameter measures 1.844″, ensuring a secure fit with your companion flange or driveshaft tubing. Additionally, pay close attention to the 3.031″ Cj to end measurement to guarantee proper alignment within your setup.
Common mistakes during installation include neglecting the spline engagement depth. Forcing the spline can lead to premature wear or failure, so always ensure a smooth entry. It’s also important to verify the phasing with the opposite yoke to avoid vibration issues down the line.
- Check spline count and diameter before installation.
- Ensure a proper fit with the 1.844″ hub diameter.
- Verify the 3.031″ Cj to end measurement for alignment.
- Inspect for any wear on mating surfaces.
- Do not force spline entry; ensure smooth engagement.
The 3504-02 End Yoke is specifically designed for AMC 20 applications, making it a reliable choice for your driveline needs. With the right attention to detail during installation, you can ensure optimal performance and longevity.
| Cj to end |
3.031 |
|---|---|
| Hub dia |
1.844 |
| Notes |
AMC 20 ,STRAP PART NUMBER: 3-70-28 |
| Partn number |
3504-02 |
| Series |
1350 |
| Splines count |
28 |
| Splines dia |
1.229 |
| Style |
BS |
| Through hole |
1.375 |
