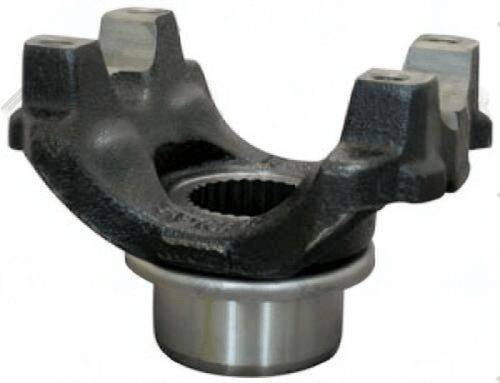

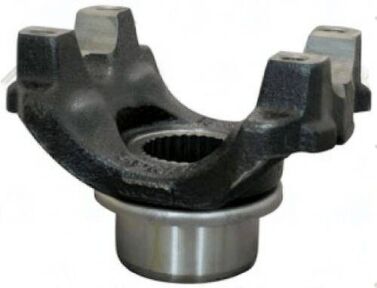

3504-01 – End Yoke – 1350 Series – 1.276″ Splines Dia – 1.875″ Hub Dia”,
$116.77
1 in stock
Description
The 3504-01 End Yoke is a vital component that connects the driveshaft to the transmission or differential in vehicles equipped with DANA 60 and 70 axles. This yoke is engineered to handle the torque transfer requirements of high-performance applications. With a 1350 Series design, it ensures compatibility with U-joints that match the cap diameter and cross width of this series.
Key specifications of the 3504-01 include 29 splines with a diameter of 1.276″ and a hub diameter of 1.875″. The 3.000″ Cj to end measurement is critical for ensuring proper alignment and fitment within the driveline. When installing, always check the spline engagement depth and verify phasing with the opposite yoke to avoid vibrations and premature wear.
- 29 splines for robust torque transfer
- 1.276″ spline diameter ensures a snug fit with compatible U-joints
- 1.875″ hub diameter for reliable connection
- 3.000″ Cj to end measurement for accurate alignment
- Compatible with DANA 60 and 70, strap part number: 3-70-28
In summary, the 3504-01 End Yoke is designed to meet the demands of high-torque applications while maintaining compatibility with existing driveline components. Its thoughtful engineering ensures that it can withstand the rigors of performance driving, making it a reliable choice for fabricators and fleet technicians alike.
| Cj to end | 3.000" |
|---|---|
| Hub dia | 1.875 |
| Notes | DANA 60 AND 70 ,STRAP PART NUMBER: 3-70-28 |
| Partn number | 3504-01 |
| Series | 1350 |
| Splines count | 29 |
| Splines dia | 1.276 |
| Style | BS |
| Through hole | 1.500" |
