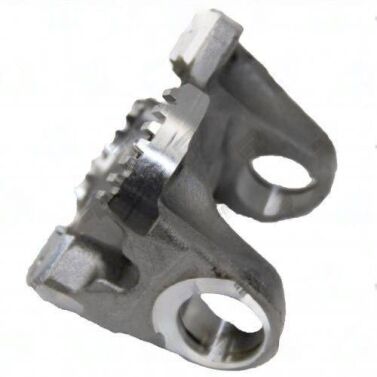

3502-391 Flange Yoke 1350 Serrated – 68036718AB Bolt Circle Diameter: 3.950, 2.874 x 2.874 (SQ), 0.430
$75.90
3 in stock
10
People watching this product now!
Description
3502-391 Flange Yoke — 1350 series, 3.950 bolt circle | N/A pilot | 8×0.430 bolt holes | 2.375″ CJ-to-flat. Proven bolt-on replacement. Verify bolt circle and pilot before ordering.
Full Description
When a 1350 series flange yoke fails, the symptoms show up fast: driveline clunk under acceleration, vibration that doesn't go away with speed changes, or visible play at the diff flange. The 3502-391 flange yoke is the spec-correct replacement — correct bolt circle, correct pilot, correct series. Dimension confirmation before ordering is still the right call.
3502-391 Flange Yoke — 1350 Series Specifications & Fitment
The 1350 series covers 3/4-ton trucks — F-250, Ram 2500, Dana 44/60 axles, performance 4x4. The 3502-391 flange yoke specs: 3.950 bolt circle | N/A pilot | 8x0.430 bolt holes | 2.375" CJ-to-flat. Pilot diameter is what centers the yoke on the companion flange — that dimension must match exactly or the driveshaft will run off-center at speed. Bolt circle determines your hole pattern match.
Before ordering the 3502-391 flange yoke, measure your diff flange bolt circle and pilot diameter directly. Don't rely on series designation alone — after an axle swap, the flange dimensions may differ from the original factory spec. Brand: UDS. Verify, then order.
Key Features
- Series: 1350 — built for 3/4-ton trucks — F-250, Ram 2500, Dana 44/60 axles, performance 4x4
- Bolt circle: 3.950 — must match axle/diff flange hole pattern exactly
- Pilot dia: N/A — centers yoke on companion flange, no play allowed
- 8 bolt holes at 0.430 — verify hole count and size
- CJ-to-flat: 2.375" — affects driveshaft working angle clearance
- Brand: UDS — direct-fit replacement
Specifications
- SKU: 3502-391
- Brand: UDS
- Series: 1350
- Bolt Circle: 3.950
- Pilot Dia: N/A
- Bolt Holes: 8
- Bolt Hole Dia: 0.430
- CJ to Flat: 2.375"
Additional information
| Bolt circle dia |
3.950 |
|---|---|
| Bolt hole dia |
0.430 |
| Cj to flat |
2.375 |
| Partn number |
3502-391 |
| Pilot dia |
N/A ,SERRATED |
| Series |
1350 |
| Bolt Holes |
8 |
