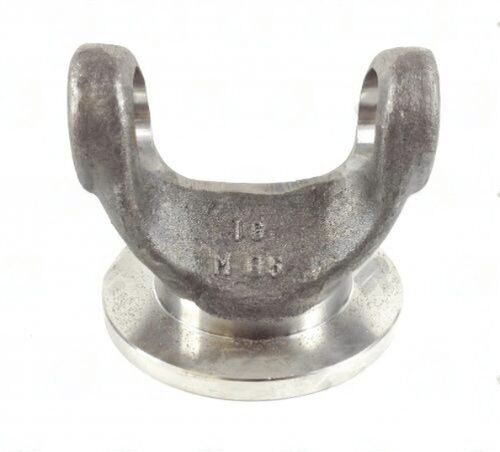

3502-1000 – Flange Yokes – 1350 Series – Bolt Hole Dia 0.000″ – Pilot Dia 2.245, F

Replacing a worn or damaged flange yoke starts with getting the right part. The 3502-1000 flange yoke is dimensioned for one bolt circle, one pilot diameter, and one drivetrain series — 1350 series. A mismatched bolt circle means the yoke won't seat flat. A wrong pilot means the driveshaft runs off-center. The 3502-1000 flange yoke removes both risks.

3502-1000 Flange Yoke — 1350 Series Specifications & Fitment

The 1350 series covers 3/4-ton trucks — F-250, Ram 2500, Dana 44/60 axles, performance 4x4. The 3502-1000 flange yoke specs: 0 bolt circle | 2.245 pilot | N/Ax0.000 bolt holes | 2.598" CJ-to-flat. Pilot diameter is what centers the yoke on the companion flange — that dimension must match exactly or the driveshaft will run off-center at speed. Bolt circle determines your hole pattern match.

Before ordering the 3502-1000 flange yoke, measure your diff flange bolt circle and pilot diameter directly. Don't rely on series designation alone — after an axle swap, the flange dimensions may differ from the original factory spec. Brand: UDS. Verify, then order.

Key Features

• Series: 1350 — built for 3/4-ton trucks — F-250, Ram 2500, Dana 44/60 axles, performance 4x4
• Bolt circle: 0 — must match axle/diff flange hole pattern exactly
• Pilot dia: 2.245 — centers yoke on companion flange, no play allowed
• N/A bolt holes at 0.000 — verify hole count and size
• CJ-to-flat: 2.598" — affects driveshaft working angle clearance
• Brand: UDS — direct-fit replacement

Specifications

• SKU: 3502-1000
• Brand: UDS
• Series: 1350
• Bolt Circle: 0
• Pilot Dia: 2.245
• Bolt Holes: N/A
• Bolt Hole Dia: 0.000
• CJ to Flat: 2.598"
