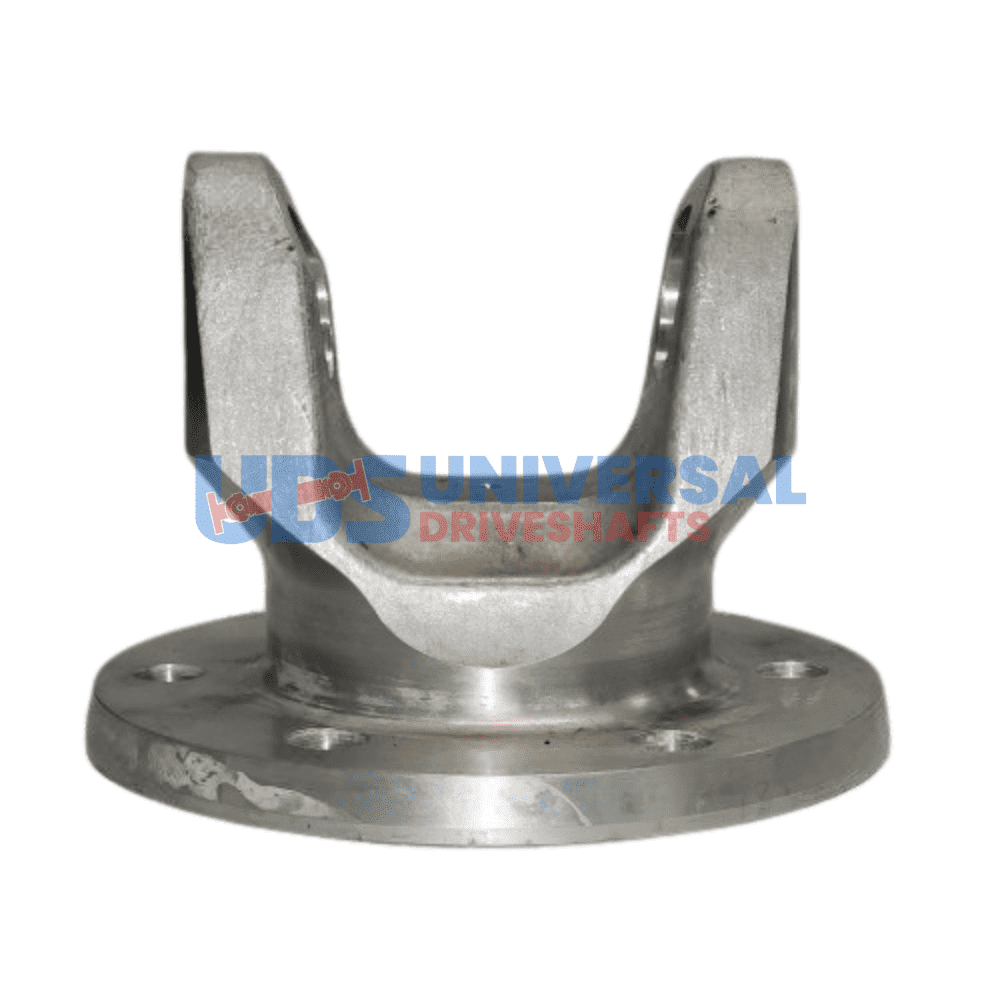

3502-0166 UDS Flange Yoke 1350 Series – Aluminum 6061-T6 Tri Flange
$136.89
10 in stock
19 People watching this product now!
Description
3502-0166U Flange Yoke — 1350 series, 4.134 bolt circle | 0.630 pilot | 6×0.559 bolt holes | 3.000″ CJ-to-flat. Professional bolt-on replacement. Verify bolt circle and pilot before ordering.
Full Description
The 3502-0166U flange yoke mounts to the companion flange or axle housing and carries the driveshaft end u-joint. It's not a universal part — the bolt circle, pilot diameter, and series are all specific. Vibration that tracks with vehicle speed and stays consistent under load often starts right here, at a worn or mis-seated flange yoke. The 3502-0166U flange yoke is the correct replacement.
3502-0166U Flange Yoke — 1350 Series Specifications & Fitment
The 1350 series covers 3/4-ton trucks — F-250, Ram 2500, Dana 44/60 axles, performance 4x4. The 3502-0166U flange yoke specs: 4.134 bolt circle | 0.630 pilot | 6x0.559 bolt holes | 3.000" CJ-to-flat. Aluminum 6061-T6 Tri Flange, 105mm (4.134) and 110mm (4.331) bolt circle spacing, 14mm bolt holes, 16mm nose hole, Hole to hole: 105mm BC = 3.580", 110mm BC = 3.750". Pilot diameter is what centers the yoke on the companion flange — that dimension must match exactly or the driveshaft will run off-center at speed. Bolt circle determines your hole pattern match.
Before ordering the 3502-0166U flange yoke, measure your diff flange bolt circle and pilot diameter directly. Don't rely on series designation alone — after an axle swap, the flange dimensions may differ from the original factory spec. Brand: UDS. Verify, then order.
Key Features
- Series: 1350 — built for 3/4-ton trucks — F-250, Ram 2500, Dana 44/60 axles, performance 4x4
- Bolt circle: 4.134 — must match axle/diff flange hole pattern exactly
- Pilot dia: 0.630 — centers yoke on companion flange, no play allowed
- 6 bolt holes at 0.559 — verify hole count and size
- CJ-to-flat: 3.000" — affects driveshaft working angle clearance
- Brand: UDS — direct-fit replacement
- Note: Aluminum 6061-T6 Tri Flange, 105mm (4.134) and 110mm (4.331) bolt circle spacing, 14mm bolt holes, 16mm nose hole, Hole to hole: 105mm BC = 3.580", 110mm BC = 3.750"
Specifications
- SKU: 3502-0166U
- Brand: UDS
- Series: 1350
- Bolt Circle: 4.134
- Pilot Dia: 0.630
- Bolt Holes: 6
- Bolt Hole Dia: 0.559
- CJ to Flat: 3.000"
- Notes: Aluminum 6061-T6 Tri Flange, 105mm (4.134) and 110mm (4.331) bolt circle spacing, 14mm bolt holes, 16mm nose hole, Hole to hole: 105mm BC = 3.580", 110mm BC = 3.750"
Additional information
| Partn number | 3502-0166 |
|---|---|
| Pilot dia | 0.630 |
| Bolt circle dia | 4.134 |
| Bolt hole dia | 0.559 |
| Series | 1350 |
| Brand | UDS |
| Notes | Aluminum 6061-T6 Tri Flange, 105mm (4.134) and 110mm (4.331) bolt circle spacing, 14mm bolt holes, 16mm nose hole, Hole to hole: 105mm BC = 3.580", 110mm BC = 3.750" |
| Bolt Holes | 6 |
| Cj to flat | 3.000 |
