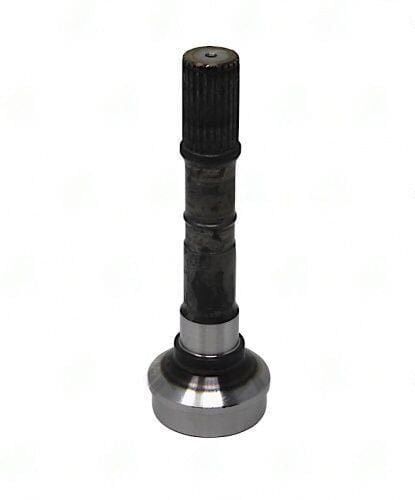

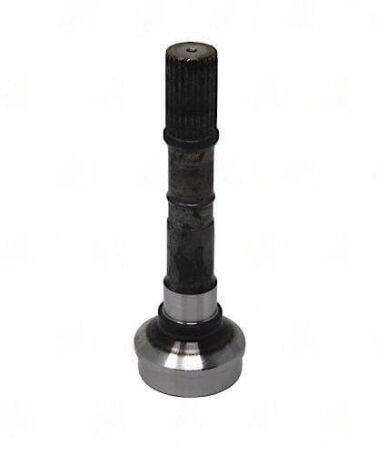

3153-253 – Stub & Midship Shaft – 25 X 1.080 Splines – Bearing Dia 1.181″ – Butt Dia 2.344
$91.30
Description
The 3153-253 Stub & Midship Shaft is an essential component for any driveline setup that requires reliable torque transmission. This shaft features 25 X 1.080 splines, ensuring a secure fit with compatible yokes and components. Specifically designed for use with the 3126-253 CVJ weld yoke, it also pairs seamlessly with the 3152-1002, making it a versatile choice for various applications.
One of the key specifications of the 3153-253 is its bearing diameter of 1.181 inches and butt diameter of 2.344 inches. The tube diameter wall measures 2.500 X 0.083 inches, providing the necessary strength and stability for high-torque applications. With a spline length of 1.578 inches and an end-to-weld measurement of 7.055 inches, this shaft is engineered to meet the demands of performance and durability.
When installing the 3153-253, it’s crucial to ensure proper alignment and phasing. Here are some tips for installation:
- Verify spline count and ensure it matches the mating components.
- Check for proper phasing marks before installation.
- Torque all bolts to the manufacturer’s specifications.
- Inspect for runout and balance to prevent vibrations.
With its robust design and compatibility with specific yokes, the 3153-253 Stub & Midship Shaft is built to handle the torque path and load stability required in demanding driveline applications.
| Bearing dia |
1.181 |
|---|---|
| Butt dia |
2.344 |
| End to weld |
7.055 |
| Notes |
plunge cvj set up with 3126-253 cvj weld yoke ,USED WITH: 3152-1002 |
| Partn number |
3153-253 |
| Remaining stock |
>10 |
| Splines count dia |
25 X 1.080 |
| Splines length |
1.578 |
| Tube dia |
2.500 |
| Tube wall |
0.083" |
| Style |
CVJ |
