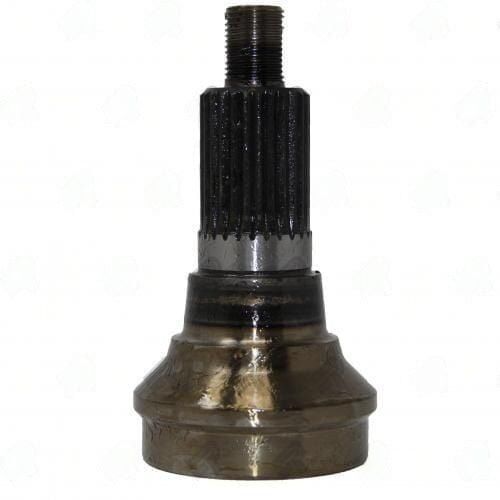

3153-252 – Stub & Midship Shaft – 26 X 1.125 Splines – Bearing Dia 1.181″ – Tube Dia Wall 2.500X0.083
$63.26
20 People watching this product now!
Description
Stub & Midship Shaft with 26 X 1.125 splines and 1.181″ bearing diameter. Fits specific applications.
Full Description
The 3153-252 Stub & Midship Shaft is engineered to deliver reliable torque transmission from the transmission to the differential. With 26 X 1.125 splines, this shaft ensures a precise fit that aligns with specific output requirements, critical for maintaining optimal performance in your driveline setup. Measuring 1.181 inches in bearing diameter, this component provides a robust interface that supports the necessary load and torque. The butt diameter of 2.344 inches and a tube wall thickness of 0.083 inches contribute to the overall strength and durability of the shaft, making it suitable for demanding applications. Installation is straightforward, but attention to detail is essential. Ensure that the spline count and dimensions match your existing setup to avoid misalignment and potential failure. The splines length of 1.375 inches and an end-to-weld measurement of 3.375 inches are critical for proper fitment. This shaft is also noted for compatibility with the 3104-264 nut, ensuring a secure connection.
- Verify spline count and dimensions before installation.
- Check runout and balance to prevent vibrations.
- Torque all bolts to specification for optimal performance.
- Inspect mating components for wear and compatibility.
Additional information
| Bearing dia | 1.181 |
|---|---|
| Butt dia | 2.344 |
| End to weld | 3.375 |
| Notes | USED WITH: 3104-264 NUT:858018 |
| Partn number | 3153-252 |
| Splines count dia | 26 X 1.125 |
| Splines length | 1.375 |
| Tube dia | 2.500 |
| Tube wall | 0.083" |
| Style | FIXED |
