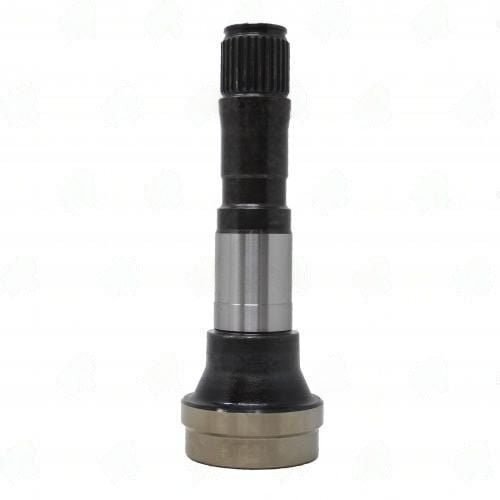

3153-1081 – Stub & Midship Shaft – 28 X 1.188 Splines – Bearing Dia 1.378″ – Butt Dia 2.344
$71.34
Description
The 3153-1081 Stub & Midship Shaft is engineered for precision in torque transmission, specifically in plunge CVJ setups using the 3126-108 CVJ weld yoke. This configuration is crucial for maintaining the integrity of your driveline system, ensuring smooth operation and optimal performance.
With 28 X 1.188 splines, this shaft provides a robust connection to the transmission or transfer case. The bearing diameter of 1.378″ and butt diameter of 2.344″ ensure compatibility with various driveline components, while the tube diameter of 2.500″ and wall thickness of 0.083″ contribute to its strength and durability. The length from end to weld measures 945″, making it essential to verify that this matches your specific application for proper fitment.
Using the wrong dimensions or series can lead to significant issues, such as vibrations or premature failure. For instance, a mismatch in spline count or diameter can prevent the correct U-joint from being installed, leading to driveline failure. Therefore, it’s critical to ensure that the 3153-1081 is the correct choice for your setup.
- Verify spline count: 28 X 1.188 for proper fit.
- Check bearing diameter: 1.378″ for compatibility.
- Ensure tube diameter of 2.500″ matches your application.
- Installation tip: Torque bolts to specification and check for runout.
- Used with: 3152-1081 for optimal performance.
In summary, the 3153-1081 Stub & Midship Shaft is a vital component for your driveline, designed to handle the demands of modern vehicles while ensuring reliability and performance.
| Bearing dia | 1.378 |
|---|---|
| Butt dia | 2.344 |
| End to weld | 945 |
| Notes | plunge cvj set up with 3126-108 cvj weld yoke ,USED WITH: 3152-1081 |
| Partn number | 3153-1081 |
| Remaining stock | >10 |
| Splines count dia | 28 X 1.188 |
| Splines length | 1.188 |
| Tube dia | 2.500 |
| Tube wall | 0.083" |
| Style | CVJ |
More Parts from the same Category
Image | Part # | Part Details | Price | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Stub & Midship Shaft (170) | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 | Remaining stock '+10 Partn number 1253-242 Butt dia 1.875 Splines count dia 24 x 0.995 End to weld 2.875 Style FIXED Notes use is with : 1204-241 nut sold sepratly: 858018 Tube dia 2.000 Tube wall 0.065" | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 | Butt dia 2.375 End to weld 3.125 Notes USE WITH: 1204-261 , Uses 858018 nut Partn number 1253-261 Remaining stock >10 Splines count dia 26 x 1.115 Splines length 1.120 Tube dia 2.500 Tube wall 0.065" Style FIXED | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 | Bearing dia 1.181 Butt dia 1.875 End to weld 2.875 Notes USE WITH: 1204-261 , Uses 858018 nut Partn number 1253-262 Remaining stock >10 Splines count dia 26 x 1.115 Splines length 1.180 Tube dia 2.000 Tube wall 0.065" Style FIXED | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 | Bearing dia 1.181 Butt dia 2.375 End to weld 6.625 Notes This stub also has snap ring groove at 16mm to retain bearing. USE IT WITH: 2252-682 Partn number 1254-681 Remaining stock >10 Splines count dia 19 X 0.850 Splines length 775 Tube dia 2.500 Style CVJ Tube wall 0.065" | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 | Bearing dia 1.181 Butt dia 2.344 End to weld 6.625 Notes use it with: 2252-682 Partn number 1254-683 Remaining stock <10 Splines count dia 19 X 0.850 Splines length 775 Tube dia 2.500 Tube wall 0.083" Style CVJ | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 | Butt dia 2.435 End to weld 7.500 Notes TOYOTA Partn number 1340-20 Remaining stock <10 Splines count dia 20 X 1.310 Splines length 1.765 Tube dia 2.560 Tube wall 0.065" Style Slip | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 | Butt dia 2.435 End to weld 9.375 Notes Toyota, Sold only in kit 1343-20L Partn number 1340-20L Remaining stock <10 Splines count dia 20 X 1.310 Splines length 6.500 Tube dia 2.560 Tube wall 0.065" Style Slip | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 | Butt dia 2.435 End to weld 6.375 Notes TOYOTA Partn number 1340-21 Remaining stock >10 Splines count dia 20 X 1.310 Splines length 1.880 Tube dia 2.560 Tube wall 0.065" Style Slip | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 | Bearing dia 1.181 Butt dia 2.435 End to weld 4.000 Notes Fits Toyota OE Tube / 1374-233 nut included ⋅ Use with: 1301-231 Partn number 1353-231 Remaining stock >10 Splines count dia 23 X 0.990 Splines length 1.375 Tube dia 2.560 Tube wall 0.065" Style FIXED | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 | Bearing dia 1.181 Butt dia 2.344 End to weld 4.000 Notes Fits Toyota OE Tube / 1374-233 nut included ⋅ Use with: 1301-231 Partn number 1353-232 Remaining stock >10 Splines count dia 23 X 0.990 Splines length 1.375 Tube dia 2.500 Tube wall 0.083" Style FIXED | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
