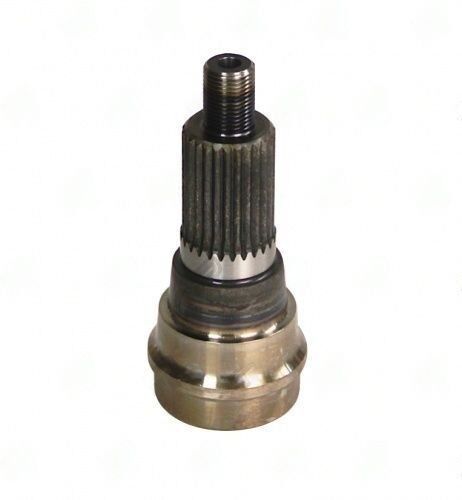

3153-201 – Stub & Midship Shaft – 26 X 1.125 Splines – Bearing Dia 1.181″ – Butt Dia 1.844
$62.00
Description
The 3153-201 Stub & Midship Shaft is engineered to deliver reliable torque transfer from the transmission to the differential. With 26 X 1.125 splines, this shaft is designed for specific applications, ensuring a precise fit and optimal performance. Before installation, confirm that the spline count matches your transmission output; a common oversight is mismatching spline sizes, which can lead to significant installation issues.
Key specifications include a bearing diameter of 1.181 inches and a butt diameter of 1.844 inches. The tube diameter measures 2.000 inches, with a wall thickness of 0.083 inches, providing the necessary strength and stability under load. The splines length is 1.125 inches, and the end-to-weld measurement is 1.375 inches, both critical for ensuring the correct alignment and fitment in your driveline setup.
When preparing for installation, follow these tips:
- Verify the spline count and ensure it matches your existing components.
- Check the runout before installation to avoid vibration issues.
- Torque all fasteners to the manufacturer’s specifications to maintain integrity.
- Inspect the mating components for wear or damage.
Remember, this shaft is used with nut part number 858018 and is compatible with the 3104-264 application. Proper installation will ensure that the 3153-201 functions effectively, maintaining the torque path and load stability throughout your driveline system.
| Bearing dia | 1.181 |
|---|---|
| Butt dia | 1.844 |
| End to weld | 1.375 |
| Notes | NUT PART NUMBER: 858018 ,USED WITH: 3104-264 |
| Partn number | 3153-201 |
| Remaining stock | >10 |
| Splines count dia | 26 X 1.125 |
| Splines length | 1.125 |
| Tube dia | 2.000 |
| Tube wall | 0.083" |
| Style | FIXED |
