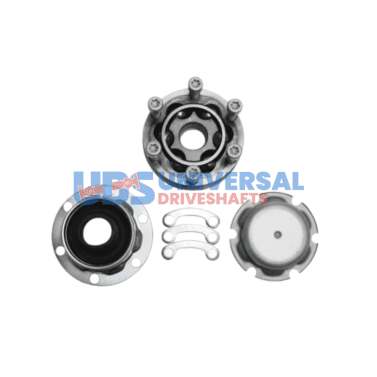

3152-1082 – CV Joint Kit – 38 x 1.14″ Splines – Inner Race Width 26.2mm – Outer Race Width 32″

The 3152-1082 CV Joint Kit is a critical component for Chrysler vehicles, engineered to provide constant velocity power transfer at variable angles. This Rzeppa style joint is commonly found at the outboard end, ensuring smooth operation during turns and acceleration. With 38 splines and a 1.14″ spline diameter, it meets the specific torque and load requirements of Chrysler applications.

One of the key features of the 3152-1082 is its inner race width of 26.2mm and outer race width of 32mm, which are optimized to handle the axial and radial loads experienced during operation. The outer diameter of 108mm and bolt circle diameter of 94mm ensure compatibility with the vehicle’s existing driveline components. Additionally, the bolt hole count of 6 and bolt hole diameter of 10.2mm provide secure mounting, essential for maintaining alignment and performance.

When installing the 3152-1082, it is crucial to pack the joint with the specified grease amount and use a new boot and clamps to prevent grease contamination. Symptoms of failure may include clicking noises during turns or visible wear on the boot, indicating the need for immediate replacement.

• Ensure proper spline engagement with 38 splines and 1.14″ diameter.
• Use (6) M10-1.5x55mm bolts for secure installation.
• Check for internal snap ring groove compatibility with the inner race.

In summary, the 3152-1082 CV Joint Kit is designed for durability and performance in Chrysler applications, making it an essential part of your driveline system.
