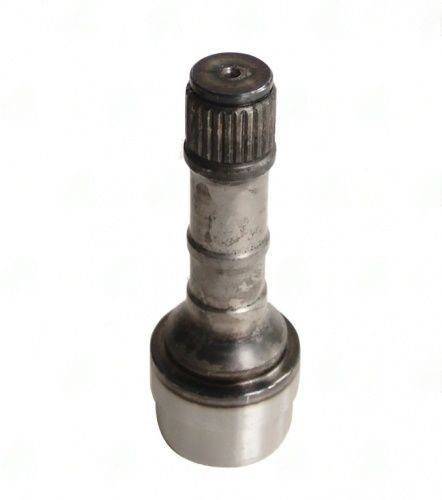

3142-202 – Stub & Midship Shaft – 25X 1.071 Splines – Butt Dia 1.844″ – Tube Dia Wall 2.000X0.083
$80.17
Description
The 3142-202 Stub & Midship Shaft plays a crucial role in the driveline by efficiently transmitting torque from the transmission to the differential. With 25X 1.071 splines, this shaft is specifically designed to fit the 3152-1001 fixed CVJ Kit, ensuring compatibility and optimal performance in your application.
Engineers selected the dimensions of the 3142-202 to balance strength and weight. The butt diameter of 1.844″ provides a robust connection point, while the tube diameter and wall thickness of 2.000X0.083 allow for effective load handling without excessive weight. The length of 1.071″ for the splines ensures a secure fitment, which is critical for maintaining alignment and reducing wear.
When installing the 3142-202, consider the following:
- Verify the spline count and ensure it matches the transmission output.
- Check the runout to avoid vibration issues during operation.
- Torque all bolts to the specified application requirements.
- Inspect phasing marks to maintain proper alignment.
- Balance the assembly if any vibrations are detected post-installation.
By adhering to these guidelines, you can ensure the longevity and reliability of the driveline system. The 3142-202 Stub & Midship Shaft is engineered to meet the demands of high-torque applications while providing stability and performance.
| Butt dia |
1.844 |
|---|---|
| End to weld |
405 |
| Notes |
Used with 3152-1001 fixed CVJ Kit |
| Partn number |
3142-202 |
| Remaining stock |
>10 |
| Splines count dia |
25X 1.071 |
| Splines length |
1.071 |
| Tube dia |
2.000 |
| Tube wall |
0.083" |
| Style |
CVJ |
