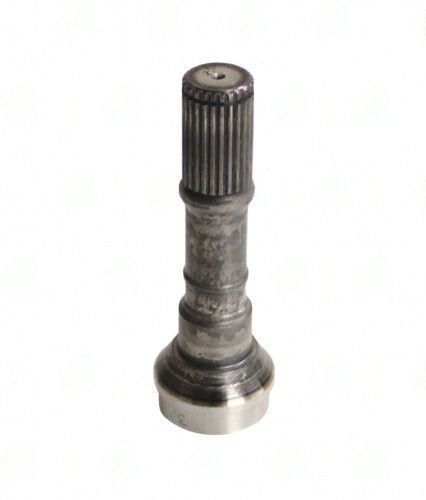

3142-201M – Stub & Midship Shaft – 25 X 1.066 Splines – Butt Dia 1.766″ – Tube Dia Wall 2.000X0.120
$89.15
18 People watching this product now!
Description
CVJ-style stub shaft for 2.000×0.120 tubing. 1.766″ butt diameter, 25×1.066 splines, 1.066″ spline length. Used with 3152-1002. UDS.
Full Description
When diagnosing driveline issues, the 3142-201M Stub & Midship Shaft is a crucial component to consider. This shaft features 25 X 1.066 splines and a butt diameter of 1.766", making it suitable for applications that require precise torque transmission, particularly those using the 3152-1002. If you're experiencing vibrations that seem to correlate with speed, this shaft could be a key player in your troubleshooting process. Worn or damaged shafts can lead to excessive vibrations, which often manifest as a noticeable shake during acceleration. If you notice a vibration that increases with speed but disappears in neutral, it may indicate that the shaft is out of phase or has a runout issue. The 3142-201M is designed to restore proper alignment and function, ensuring that torque is transmitted smoothly from the transmission to the differential.
- Butt Diameter: 1.766"
- Splines Count: 25 X 1.066
- Tube Diameter Wall: 2.000 X 0.120
- End to Weld Length: 1.481"
- Compatibility: Used with 3152-1002
Additional information
| Butt dia | 1.766 |
|---|---|
| End to weld | 1.481 |
| Notes | Used with 3152-1002 |
| Partn number | 3142-201M |
| Splines count dia | 25 X 1.066 |
| Splines length | 1.066 |
| Tube dia | 2.000 |
| Tube wall | 0.120 |
| Style | CVJ |
