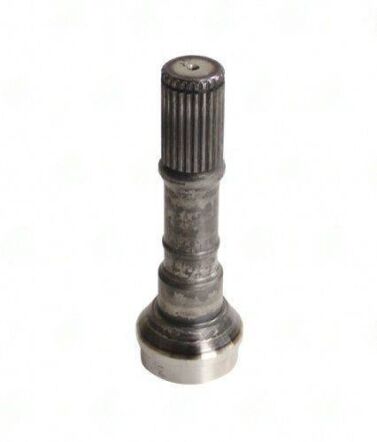

3142-201 – Stub & Midship Shaft – 25 X 1.066 Splines – Butt Dia 1.844″ – Tube Dia Wall 2.000X0.083
$94.14
Description
When you’re ready to install the 3142-201 Stub & Midship Shaft, make sure you have the right tools and measurements in hand. This component features 25 X 1.066 splines, a butt diameter of 1.844″, and a tube wall thickness of 0.083″. It’s crucial to ensure that the spline count matches the output on your transmission or transfer case to avoid any compatibility issues. This shaft is specifically designed to be used with the 3152-1002, so double-check your application before proceeding.
Before you begin installation, verify the length from flange to flange and ensure it matches your setup. The splines length of 1.066″ and the end-to-weld measurement of 1.481″ are critical for proper fitment. A common mistake is overlooking the phasing marks; ensure they align correctly to prevent vibration issues later on. After installation, torque all bolts to the manufacturer’s specifications and check for runout. If you notice any vibrations during operation, consider balancing the assembly.
- Check spline count and diameter against the transmission output.
- Verify phasing marks before installation.
- s.
- Inspect for runout after installation.
- Balance if vibration occurs during operation.
The 3142-201 is engineered to handle the demands of your driveline, ensuring efficient torque transfer and reliability in your application.
| Butt dia | 1.844 |
|---|---|
| End to weld | 1.481 |
| Notes | Used with 3152-1002 |
| Partn number | 3142-201 |
| Remaining stock | >10 |
| Splines count dia | 25 X 1.066 |
| Splines length | 1.066 |
| Tube dia | 2.000 |
| Tube wall | 0.083" |
| Style | CVJ |
