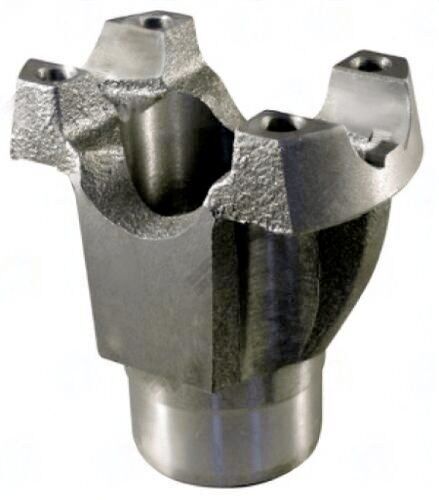

The 3104-32CV end yoke is part of the 1310 series and has several key specifications: Spec 1 measures 32-1.401, Spec 2 indicates a hub diameter of 1.875 inches, Spec 3 specifies a through-hole of 2 inches, and Spec 4 provides a centerline-to-end measurement of 3.875 inches. This CV end yoke can be paired with the sleeve number 3199-01, which alters the ground hub to 1.943 inches, making this combination interchangeable with the 3104-322CV. It serves as a replacement for the factory four-bolt transfer case output flange and the harmonic balancer in the 2003-2006 Jeep Rubicon, facilitating the construction of a 1310 Spicer-style CV rear driveshaft. The front shaft in the 2003-2006 Rubicon utilizes a factory 1310 CV. Additionally, this yoke corresponds to the Spicer 2-4-5341 and is used with PTI part number 3182-32.
3104-32CV
$90.48
1 in stock
15 People watching this product now!
Fast Shipping
Choose your Delivery Company
2k products
And múltiple Payment methods
24/7 Support
Unlimited help via our support channels
2-3 day Delivery
Track all your orders from your dashboard
Description
Additional information
| Cj to end | 3.875" |
|---|---|
| Hub dia | 1.875 |
| Notes | TRANSFER CASE NP203 & 205 |
| Partn number | 3104-32CV |
| Series | 1310 |
| Splines count | 32 |
| Splines dia | 1.401 |
| Style | CV |
| Through hole | 2.000" |
