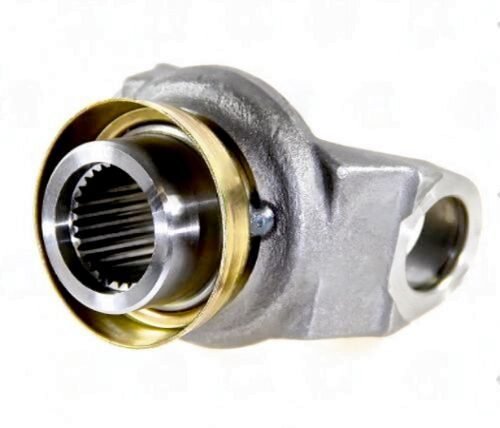

3104-302 – End Yoke – 1.278″ Splines Dia – 1310 Series
$99.61
1 in stock
Description
The 3104-302 End Yoke is a critical component for INFINIT CENTER SHAFT YOKE applications, ensuring a robust connection between the driveshaft and transmission or differential. With a spline diameter of 1.278″ and a count of 30 splines, this yoke adheres to the 1310 Series specifications, which are essential for compatibility with the appropriate U-joint.
What sets the 3104-302 apart is its hub diameter of 1.732″, making it distinct from other yokes in the same family. Using a yoke that does not match these specifications can lead to improper fitment and potential driveline failure. For instance, a yoke that is close in dimensions but not an exact match may not accommodate the correct U-joint, leading to vibrations or even catastrophic failure during operation.
- Check spline engagement depth before installation.
- Ensure proper phasing with the opposite yoke to prevent vibrations.
- Verify that the hub diameter aligns with your application requirements.
- Do not force spline entry; it should slide in smoothly.
- Inspect for any signs of wear or damage before installation.
In summary, the 3104-302 End Yoke is engineered to deliver reliable performance in demanding applications. Always ensure that you are using the correct series and dimensions to maintain the integrity of your driveline system.
| Cj to end |
3.375 |
|---|---|
| Hub dia |
1.732 |
| Notes |
INFINIT CENTER SHAFT YOKE |
| Partn number |
3104-302 |
| Series |
1310 |
| Splines count |
30 |
| Splines dia |
1.278 |
| Style |
SR |
| Through hole |
1.870" |
