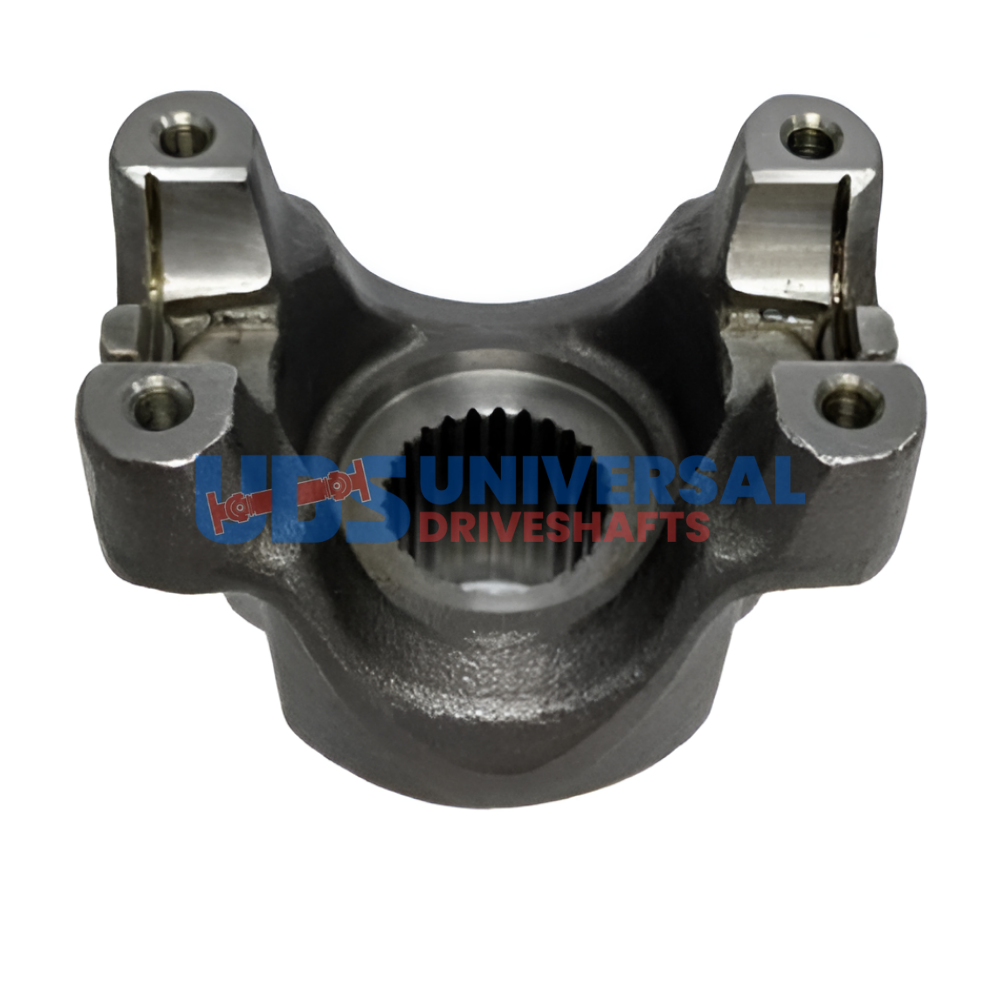

3104-264 – End Yoke – 26 x 1.146″ Splines – 3.000″ Cj To End – 1.453″ Hub Dia – Partn Number 3104-264
$45.79
11 in stock
Description
The 3104-264 is a critical component in the driveline, specifically designed as a 1310 Series End Yoke for the GM 8.2″ differential. This yoke connects the driveshaft to the differential, ensuring efficient power transfer and stability during operation. With 26 splines and a spline diameter of 1.146 inches, it provides a robust interface that can handle the torque loads typical in these applications.
Engineers selected these dimensions to balance strength and weight. The hub diameter of 1.453 inches and a centerline-to-end distance of 3.000 inches are optimized for compatibility with existing systems while allowing for necessary axial movement. The through hole measures 1.469 inches, which accommodates the necessary fasteners for secure installation.
When installing the 3104-264, keep these points in mind:
- Ensure proper spline engagement depth to avoid premature wear.
- Verify the phasing with the opposite yoke to maintain driveline balance.
- Check compatibility with the Dana u-bolt kit number 2-94-28X for secure fastening.
This yoke is not just a replacement part; it’s engineered to meet the demands of performance and reliability in various applications. The 3104-264 is essential for maintaining the integrity of the driveline in GM 8.2 setups, making it a go-to choice for technicians and builders alike.
| Cj to end |
3.000" |
|---|---|
| Hub dia |
1.453 |
| Notes |
GM 8.2 ,Midship end yoke used on multiple applications. |
| Partn number |
3104-264 |
| Series |
1310 |
| Splines count |
26 |
| Splines dia |
1.146 |
| Style |
BS |
| Through hole |
1.469 |
