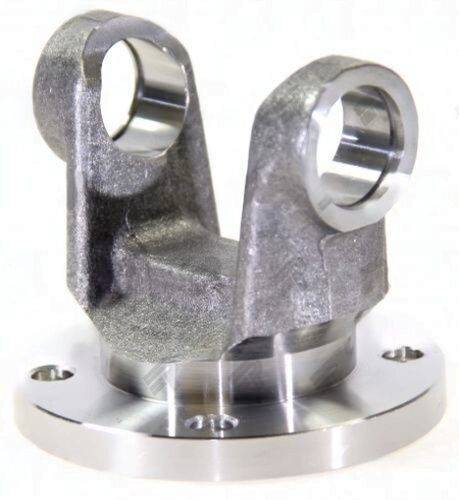

3102-40 – Flange Yokes – 1310 Series – Bolt Circle Dia 3.250″ – Bolt Hole Dia 0.385

The 3102-40 Flange Yoke is engineered for seamless integration with 1310 Series universal joints, ensuring reliable performance in your driveline assembly. This yoke connects to the transmission or differential using a robust 4-bolt pattern on a 3.250″ bolt circle, with 0.385″ diameter holes that provide secure fastening. The 4.000″ male pilot diameter enhances alignment and stability, critical for maintaining proper phasing and reducing vibration.

When installing the 3102-40, pay close attention to the spline engagement depth to avoid premature wear or failure. Proper phasing with the opposite yoke is essential to ensure smooth operation and longevity of the driveline. This yoke is designed to handle the torque loads typical in applications using 1310 Series components, making it a reliable choice for both performance and fleet applications.

• Series: 1310
• Bolt Circle Diameter: 3.250″
• Bolt Hole Diameter: 0.385″
• Pilot Diameter: 4.000″ OD
• Cj to Flat: 2.750″

In summary, the 3102-40 Flange Yoke is a critical component that ensures your driveline operates efficiently and effectively. Its precise dimensions and robust design make it an essential part for any serious builder or technician.
