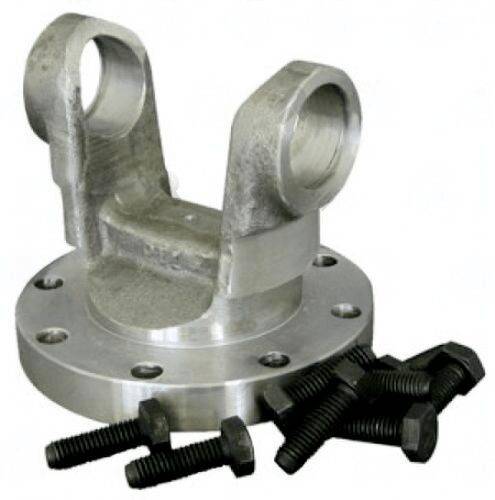

The 3102-392X Flange Yoke is a 1310 series component designed for precision and durability. It features an 8-hole pattern with 0.322″ holes on a 3.386″ bolt circle, a 3.92″ pilot diameter, and a universal joint retaining width of 3.469″. Ideal for applications requiring robust connection and performance.
$52.86
| Weight | 5 lbs |
|---|---|
| Dimensions | 25 × 18 × 10 in |
| Bolt Circle Dia | 3.386 |
| Bolt Hole Dia | 0.322, 8HOLES |
| CJ TO FLAT | 2.750 |
| Partn number | 3102-392X |
| Pilot dia | 3.937, OD |
| SERIES | 1310 |
