3102-39 | 2-2-899-1 , 1310 Series Nissan / Subaru Pilot: 57mm male , 2.250 Inch

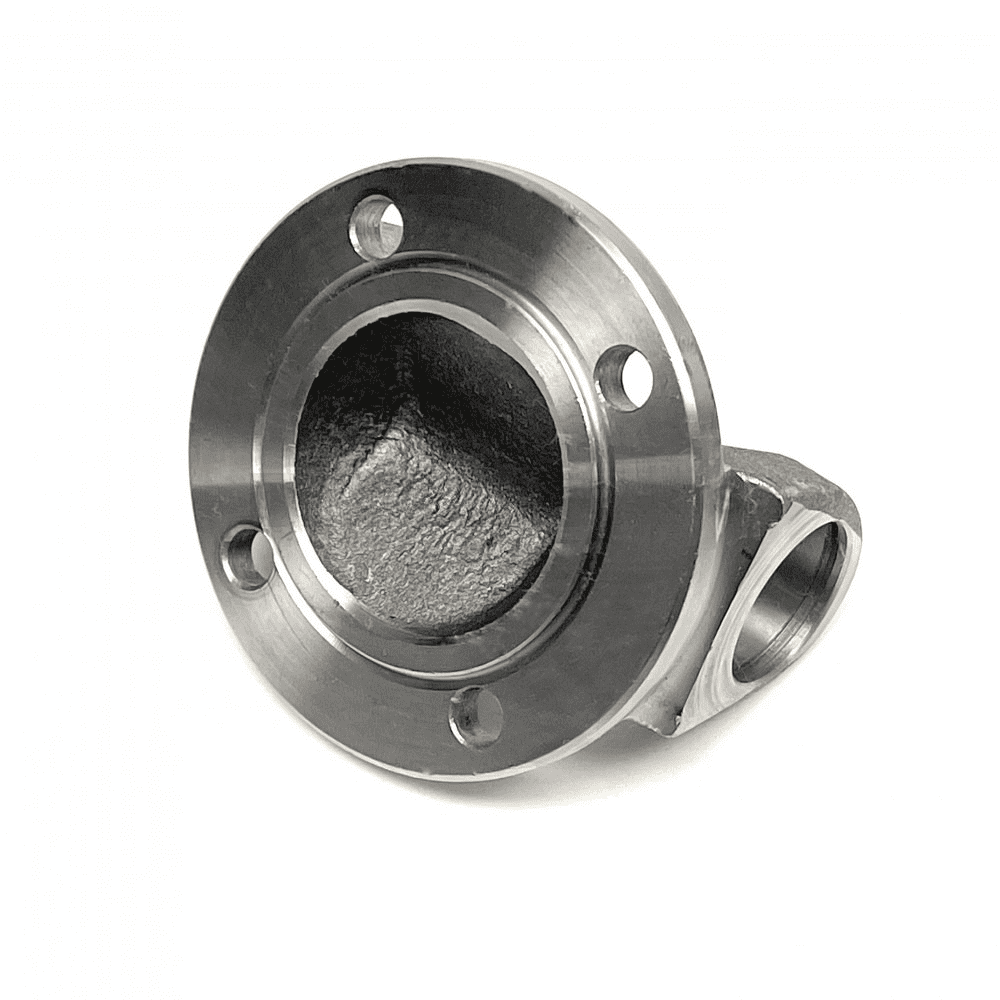

The 3102-39 Flange Yoke is a critical component for connecting driveshafts to transmissions or differentials, particularly in Nissan vehicles. With a bolt circle diameter of 2.750 inches, this yoke provides a stable mounting point that ensures proper alignment and torque transfer. The 2.245-inch male pilot diameter is designed to fit snugly into the corresponding female receptacle, allowing for efficient power transfer and minimizing the risk of misalignment.

This yoke belongs to the 1310 Series, which is known for its compatibility with a range of U-joints. The series designation also dictates the dimensions of the mating U-joint, ensuring that the cap diameter and cross width are optimized for performance. The four bolt holes, each with a diameter of 0.315 inches, allow for secure attachment to the companion flange, while the Cj to flat measurement of 1.625 inches ensures that the yoke sits correctly in relation to the driveshaft.

• Check spline engagement depth before installation.
• Verify phasing with the opposite yoke to prevent vibration.
• Ensure all bolt holes are clean and free of debris.
• Torque fasteners to the manufacturer’s specifications for optimal performance.

In summary, the 3102-39 Flange Yoke is engineered for durability and precision, making it an essential choice for Nissan applications. Its robust design and critical dimensions ensure that it meets the demands of both everyday driving and performance builds.
