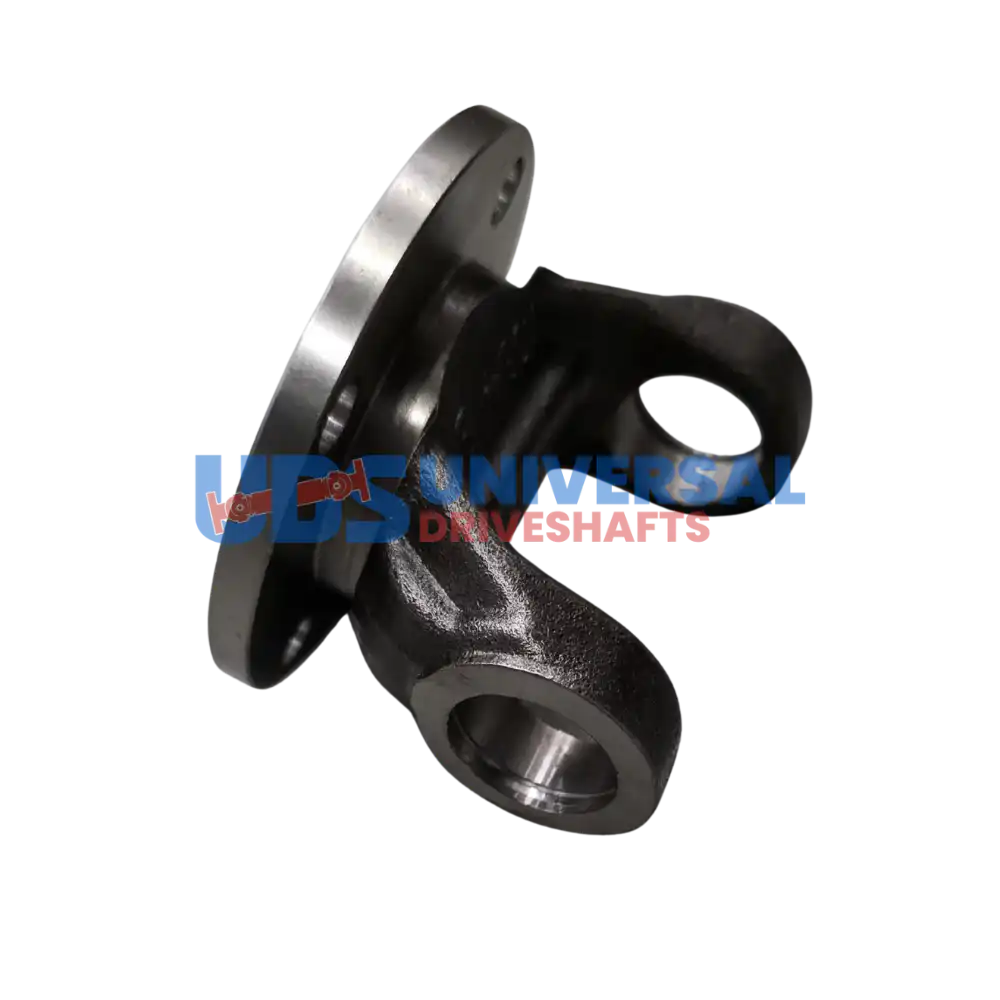

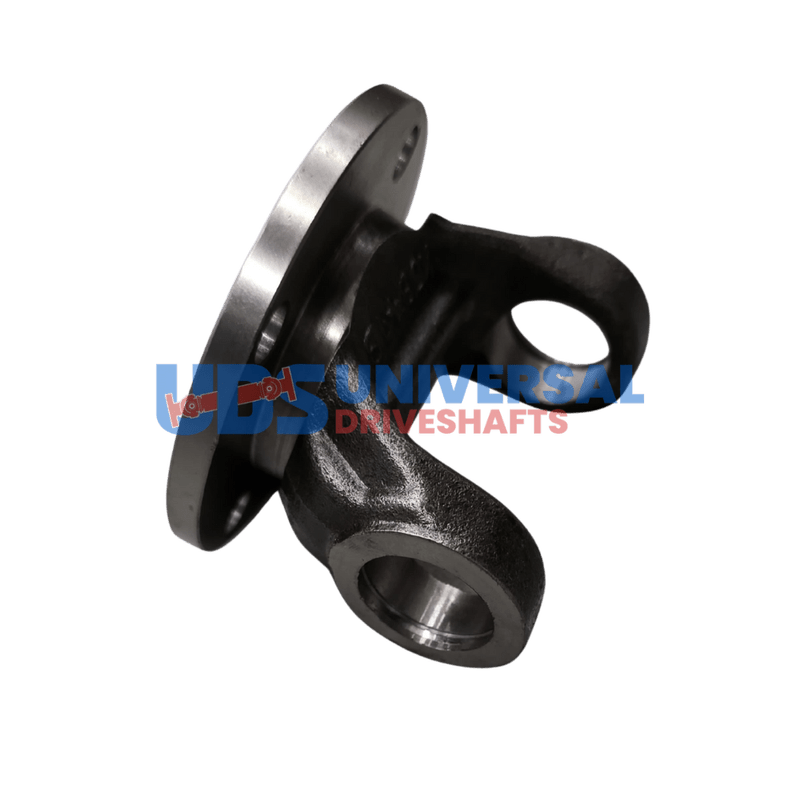

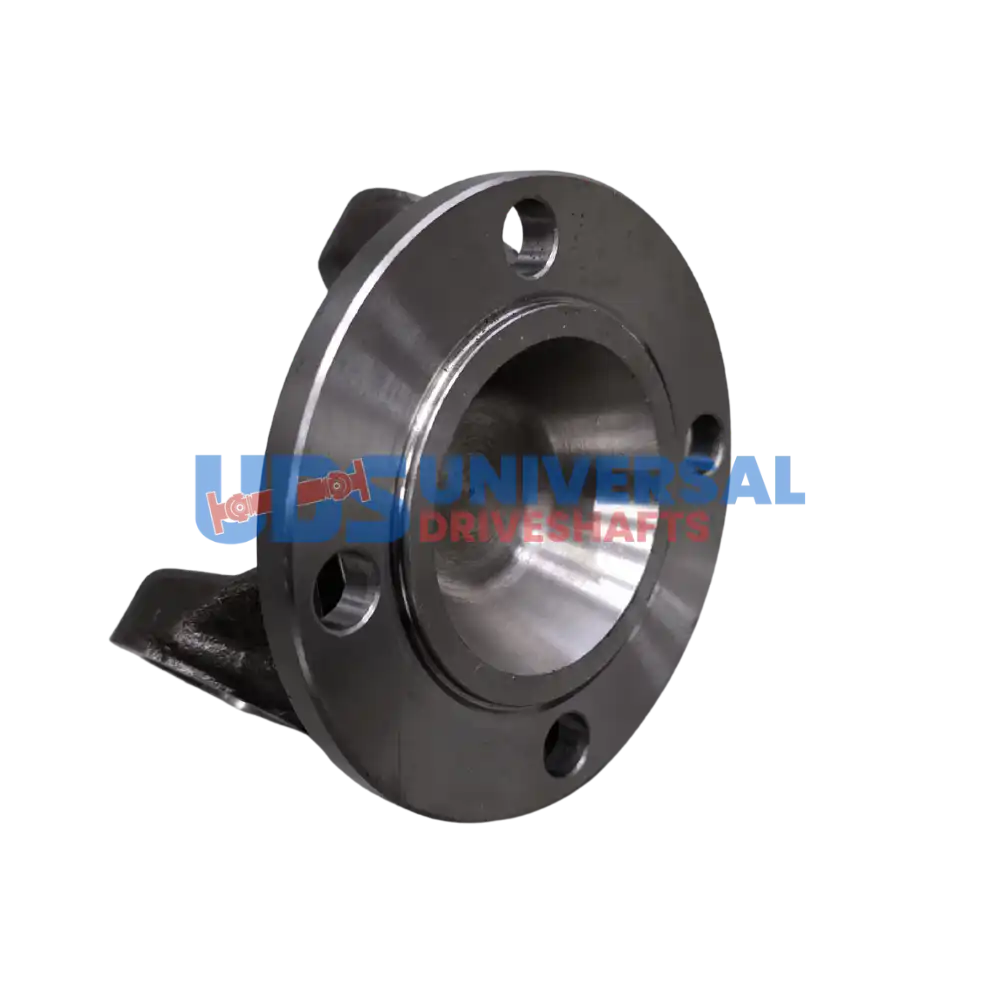

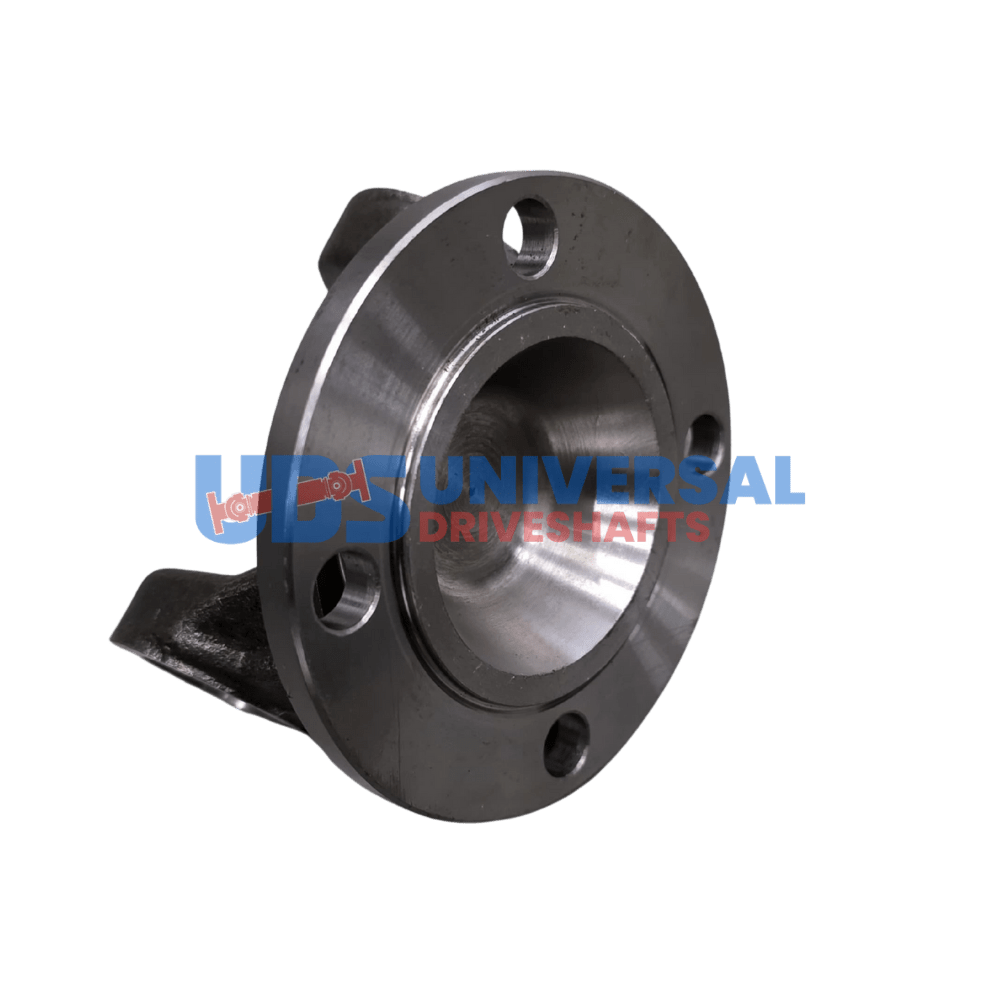

The 3102-312S Flange Yoke is a crucial component in driveline assemblies, specifically designed for 1310 Series applications. This yoke features a 3.125″ bolt circle diameter, a 2.375″ male pilot, and a square pattern of 2.200 X 2.200, making it suitable for various vehicle configurations. The design ensures a secure connection between the driveshaft and the transmission or differential, allowing for efficient power transfer.
Engineers selected these dimensions to balance strength and weight, ensuring the yoke can handle the torque loads typical in 1310 Series applications without adding unnecessary mass. The four bolt holes, each with a diameter of 0.410″, provide ample fastening points for secure installation. The centerline to flange face distance of 2.000″ is optimized for proper alignment and phasing with the opposite yoke, which is critical for smooth operation and longevity of the driveline.
- Series: 1310
- Bolt Circle Diameter: 3.125″
- Pilot Diameter: 2.375″
- Square Pattern: 2.200 X 2.200
- Installation Tip: Always check spline engagement depth before installation.
In summary, the 3102-312S Flange Yoke is engineered to meet the demands of high-performance and heavy-duty applications, providing reliability and durability in your driveline setup. Its precise dimensions and robust design make it a go-to choice for fabricators and fleet technicians alike.
