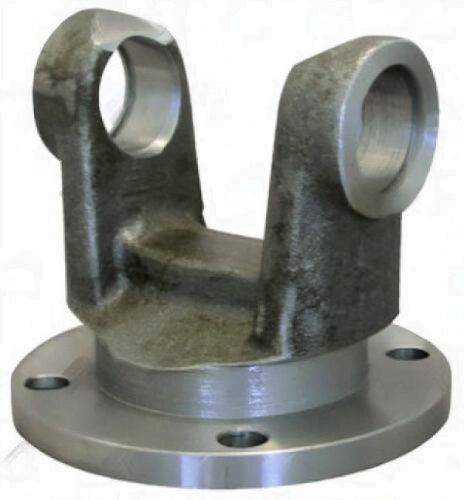

3102-18 – Flange Yokes – 1310 Series – Bolt Circle Dia 3.340″ – Pilot Dia 1.811, M

The 3102-18 flange yoke is engineered for precision and reliability in 1310 Series applications. With a bolt circle diameter of 3.340 inches, it ensures a secure connection to the companion flange, which is critical for effective torque transfer between the driveshaft and the powertrain. The 0.410 inch bolt hole diameter accommodates standard fasteners, making it compatible with common mounting setups.

The pilot diameter of 1.811 inches allows this yoke to fit snugly into the mating components, minimizing the risk of misalignment and enhancing overall driveline performance. The 2.718 inch measurement from the center journal to the flat surface (Cj to flat) provides the necessary clearance for optimal operation.

• Ensure proper spline engagement depth during installation.
• Verify phasing with the opposite yoke to maintain driveline balance.
• Use standard fasteners compatible with the 0.410 inch bolt hole diameter.
• Check for any signs of wear or damage on mating surfaces before installation.

In summary, the 3102-18 flange yoke is a vital component for maintaining the integrity of your driveline system. Its precise dimensions and robust design make it an essential choice for anyone working with 1310 Series setups.
