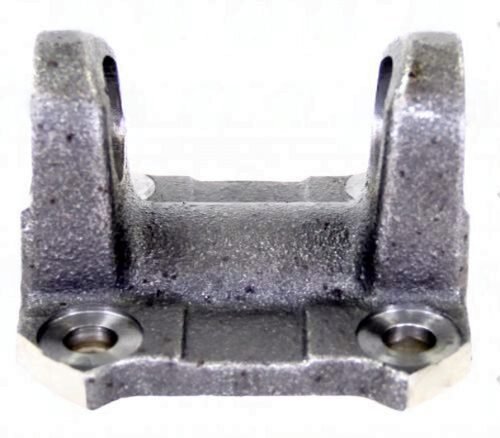

The 3102-185 Flange Yoke, part of the 1310 series, features a 1.811″ male pilot diameter and an outside snap ring. It has a 3.661″ bolt circle with four 0.445″ bolt holes. The yoke supports a U-joint with a width of 3.219″ and a bearing cap diameter of 1.063″. It has a flange face to centerline distance of 1.634″ and a swing diameter of 4.330″.
$32.23
| Weight | 5 lbs |
|---|---|
| Dimensions | 25 × 18 × 10 in |
| Bolt Circle Dia | 3.661 |
| Bolt Hole Dia | 0.445, 4HOLES |
| CJ TO FLAT | 1.634 |
| Partn number | 3102-185 |
| Pilot dia | 1.811, M |
| SERIES | 1310 |
5 in stock (can be backordered)
