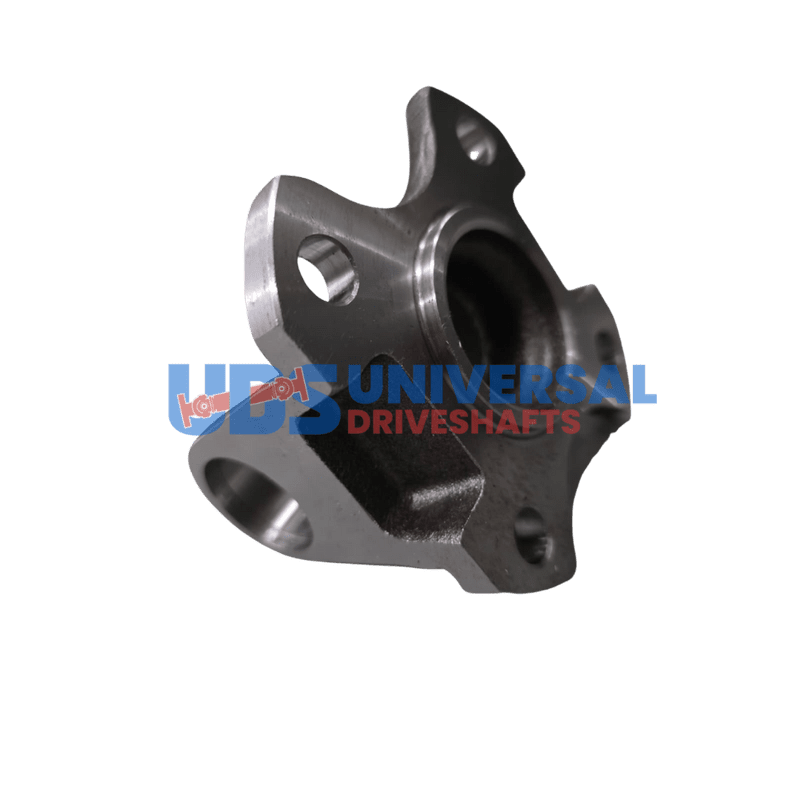

The 3102-15 Flange Yoke is a 1310 series component featuring a 1.811-inch male pilot diameter with an outside snap ring. It has a bolt circle diameter of 3.340 inches and a width of 3.219 inches. The yoke supports a 1.063-inch cap, with a flange face to centerline measurement of 1.750 inches and a swing diameter of 4.130 inches. It includes four bolt holes with a diameter of 0.410 inches and supports a joint angle of 15 degrees.
3102-15 Toyota Flange Yoke 1310 series Square 60 x 60 2-2-1679
$14.87
198 in stock (can be backordered)
20
People watching this product now!
Fast Shipping
Choose your Delivery Company
2k products
And múltiple Payment methods
24/7 Support
Unlimited help via our support channels
2-3 day Delivery
Track all your orders
Description
Additional information
| Weight | 5 lbs |
|---|---|
| Dimensions | 25 × 18 × 10 in |
| Bolt circle dia |
3.340 |
| Bolt hole dia |
0.410 ,4HOLES |
| Cj to flat |
1.750 |
| Partn number |
3102-15 |
| Pilot dia |
1.811-M |
| Series |
1310 |
